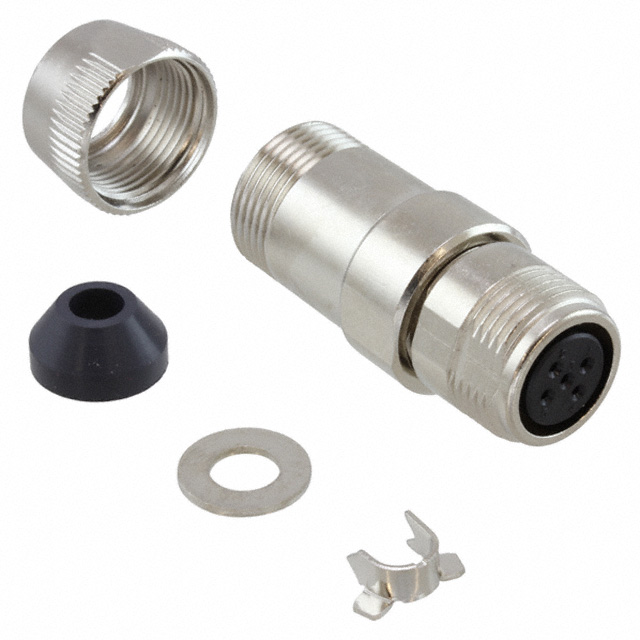

JB1HB05SL5

Obsolete

JAE Electronics

CONN RCPT HSG FMALE 5POS INLINE

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT HSG FMALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Mounting Type	Shell Size - Insert	Shell Finish	Shell Material	Contact Size	Housing Color	Features	Contact Type	Orientation	Contact Shape	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Note	Shielding
JAE Electronics JB1HB05SL5	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	B-5	Nickel	Zinc Alloy	22	Silver	Backshell Cable Clamp	Crimp	Keyed	Circular	Synthetic Resin	Receptacle Housing	-30 ░C	85 °C	For Female Sockets	Contacts Not Included	Shielded
JAE Electronics JB1HB05SL2	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	B-5	Nickel	Zinc Alloy	22	Silver	Backshell Cable Clamp	Crimp	Keyed	Circular	Synthetic Resin	Receptacle Housing	-30 ░C	85 °C	For Female Sockets	Contacts Not Included	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
