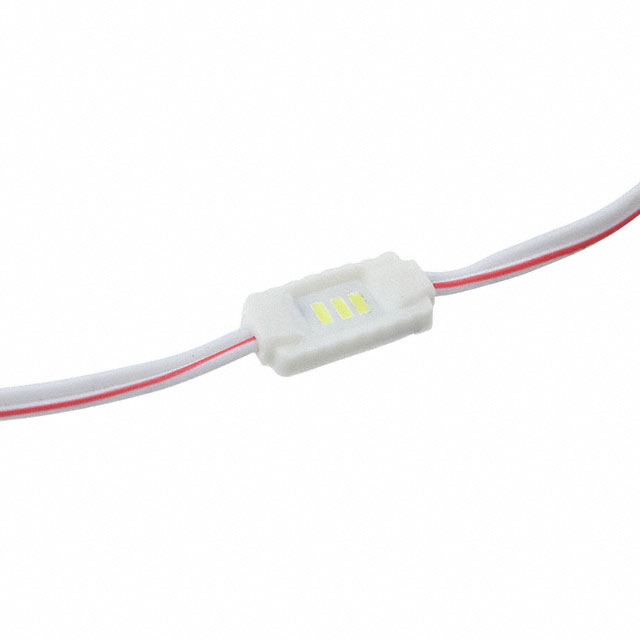

ZM-189-CW

Obsolete

JKL Components Corp.

LED MOD COOL WHT RECT 10000K

Search across all available documentation for this part.

Obsolete

JKL Components Corp.

LED MOD COOL WHT RECT 10000K

Technical Specifications

Parameters and characteristics for this part

Specification	ZM-189-CW

CCT (K)	10000 K
Color	Cool, White
Configuration	Rectangle
Current - Max [Max]	30 mA
Current - Test	30 mA
Features	IP67
Height [z]	4.19 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	92 lm/W
Luminous Flux @ Current/Temperature	33 lm
Size / Dimension [x]	16.3 mm
Size / Dimension [y]	9 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V

Part	Viewing Angle	Lumens/Watt @ Current - Test	CCT (K)	Color	Height [z]	Lens Type	Current - Test	Configuration	Voltage - Forward (Vf) (Typ)	Type	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Max [Max]	Luminous Flux @ Current/Temperature
JKL Components Corp. ZM-189-CW	120 °	92 lm/W	10000 K	Cool White	4.19 mm	Flat	30 mA	Rectangle	12 V	LED Module	16.3 mm	9 mm	IP67	30 mA	33 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Rectangle
