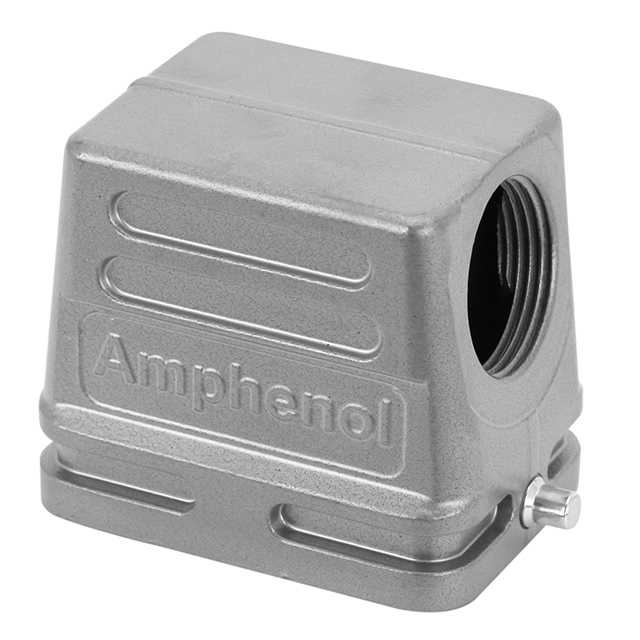

C146 50R006 507 1

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C146 50R006 507 1

Connector Type	Hood
Housing Color	Gray
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51 mm
Size / Dimension [z]	2.008 in
Style	Side Entry
Thread Size	M25

Part	Connector Type	Housing Color	Style	Ingress Protection	Thread Size	Lock Location	Housing Material	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C146 50R006 607 1	Hood	Gray	Top Entry	IP65 - Dust Tight Water Resistant	M25	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	51 mm	2.008 in	1.693 in	2.362 in	43 mm	60 mm	125 °C	-40 °C
Amphenol Tuchel Industrial C146 50R006 507 1	Hood	Gray	Side Entry	IP65 - Dust Tight Water Resistant	M25	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	51 mm	2.008 in	1.693 in	2.362 in	43 mm	60 mm	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 26.11

General part information

Hood Connector Side Entry M25 E6 IP65 - Dust Tight, Water Resistant
