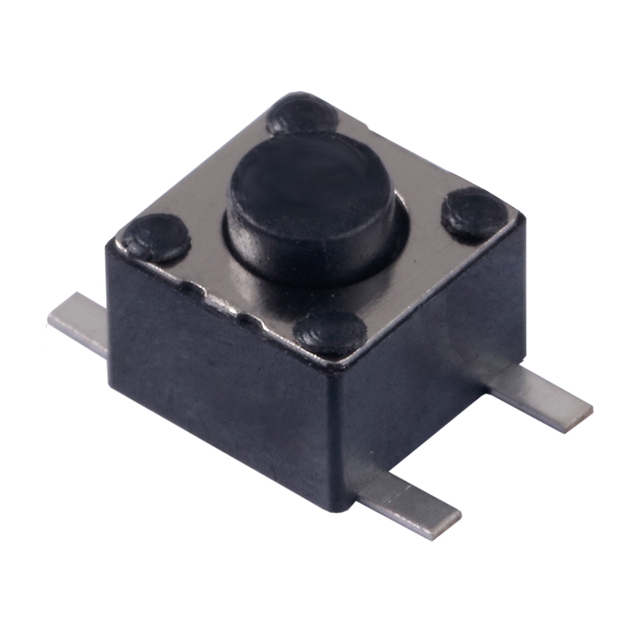

223CMVAAR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	223CMVAAR	223CMV Series

Actuator Height off PCB, Vertical	3.8 mm	3.8 mm
Actuator Height off PCB, Vertical	-	7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	4.5 mm	4.5 mm
Outline [y]	4.5 mm	4.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.2 mm	0.2 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Contact Rating @ Voltage	Actuator Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Switch Travel	Actuator Orientation	Actuator Height off PCB, Vertical	Outline [x]	Outline [y]	Circuit	Switch Function	Termination Style	Features	Mounting Type	Actuator Height off PCB, Vertical [z]
CTS Electrocomponents 223CMVAAR	0.05 A, 12 VDC	Standard	1000000 Cycles	85 °C	-40 °C	Non-Illuminated	0.2 mm	Top Actuated	3.8 mm	4.5 mm	4.5 mm	SPST-NO	Off-Mom	Gull Wing	Tactile Feedback	Surface Mount
CTS Electrocomponents 223CMVBAR	0.05 A, 12 VDC	Standard	1000000 Cycles	85 °C	-40 °C	Non-Illuminated	0.2 mm	Top Actuated		4.5 mm	4.5 mm	SPST-NO	Off-Mom	Gull Wing	Tactile Feedback	Surface Mount	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10800	$ 0.13

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources
