100SXE15M

Active

Panasonic Electronic Components

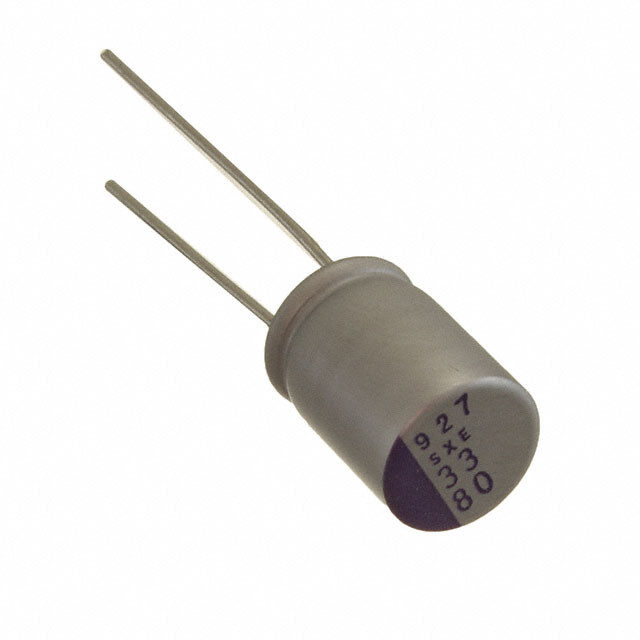

CAP ALUM POLY 15UF 20% 100V TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Conductive Poly Alum Solid Caps, Product Guide +1

100SXE15M

Active

Panasonic Electronic Components

CAP ALUM POLY 15UF 20% 100V TH

Deep-Dive with AI

DocumentsDatasheet Conductive Poly Alum Solid Caps, Product Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.85
		10	$ 2.30
		50	$ 2.12
		100	$ 1.49
		500	$ 1.31
		1000	$ 1.16
		2500	$ 1.14

Description

General part information

100SXE Series

15 µF 100 V Aluminum - Polymer Capacitors Radial, Can 40mOhm 1000 Hrs @ 125°C

Documents

Technical documentation and resources

Datasheet

Conductive Poly Alum Solid Caps, Product Guide

Datasheet

Specification	100SXE15M	100SXE Series

Applications	General Purpose	General Purpose
Capacitance	15 µF	6.8 - 27 µF
ESR (Equivalent Series Resistance)	40 mOhm	30 - 60 mOhms
Height - Seated (Max)	-	7 mm
Height - Seated (Max)	-	0.276 "
Height - Seated (Max) [Max] [z]	12 mm	8 - 13 mm
Height - Seated (Max) [Max] [z]	0.472 "	0.315 - 0.512 "
Lead Spacing	3.5 mm	3.5 - 5 mm
Lead Spacing	0.138 in	0.138 - 0.197 in
Lifetime @ Temp.	1000 Hrs	1000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Ripple Current @ High Frequency	2.35 A	1.1 - 3 A
Ripple Current @ Low Frequency	117.5 mA	100 - 150 mA
Size / Dimension [diameter]	0.315 "	0.315 - 0.394 in
Size / Dimension [diameter]	8 mm	8 - 10 mm
Tolerance	20 %	20 %
Type	Polymer	Polymer
Voltage - Rated	100 V	100 V

Part	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Type	Mounting Type	Package / Case	Capacitance	Ripple Current @ Low Frequency	Tolerance	Applications	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components 100SXE27M	30 mOhms	5 mm	0.197 in	-55 °C	125 °C	3 A	Polymer	Through Hole	Radial, Can	27 µF	150 mA	20 %	General Purpose	1000 Hrs	13 mm	0.512 "	10 mm	0.394 in	100 V
Panasonic Electronic Components 100SXE15M	40 mOhm	3.5 mm	0.138 in	-55 °C	125 °C	2.35 A	Polymer	Through Hole	Radial, Can	15 µF	117.5 mA	20 %	General Purpose	1000 Hrs	12 mm	0.472 "	8 mm	0.315 "	100 V
Panasonic Electronic Components 100SXE22M	30 mOhms	5 mm	0.197 in	-55 °C	125 °C	3 A	Polymer	Through Hole	Radial, Can	22 µF	150 mA	20 %	General Purpose	1000 Hrs	13 mm	0.512 "	10 mm	0.394 in	100 V
Panasonic Electronic Components 100SXE6R8M	60 mOhms	3.5 mm	0.138 in	-55 °C	125 °C	1.1 A	Polymer	Through Hole	Radial, Can	6.8 ÁF		20 %	General Purpose	1000 Hrs			8 mm	0.315 "	100 V	7 mm	0.276 "
Panasonic Electronic Components 100SXE18M	30 mOhms	5 mm	0.197 in	-55 °C	125 °C	3 A	Polymer	Through Hole	Radial, Can	18 µF	150 mA	20 %	General Purpose	1000 Hrs	13 mm	0.512 "	10 mm	0.394 in	100 V
Panasonic Electronic Components 100SXE15MX	60 mOhms	5 mm	0.197 in	-55 °C	125 °C	2 A	Polymer	Through Hole	Radial, Can	15 µF	100 mA	20 %	General Purpose	1000 Hrs	8 mm	0.315 in	10 mm	0.394 in	100 V
