50625PA7035/3X7

Active

Jacob GmbH

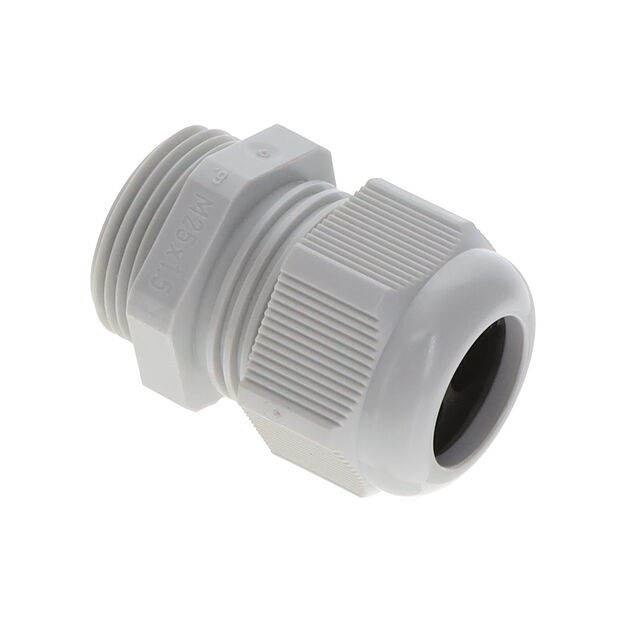

CABLE GLAND M25 POLYAMIDE

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND M25 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	50625PA7035/3X7

Color	Gray
Includes	Seal
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M25x1.5
Type	Cable Gland

Part	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Color	Ingress Protection	Thread Size	Type
Jacob GmbH 50625PA7035/4X6	Seal	100 °C	-40 °C	8 mm	0.315 in	Gray	IP65 - Dust Tight Water Resistant	M25x1.5	Cable Gland
Jacob GmbH 50625PA7035/6X4	Seal	100 °C	-40 °C	8 mm	0.315 in	Gray	IP65 - Dust Tight Water Resistant	M25x1.5	Cable Gland
Jacob GmbH 50625PA7035/3X7	Seal	100 °C	-40 °C	8 mm	0.315 in	Gray	IP65 - Dust Tight Water Resistant	M25x1.5	Cable Gland
Jacob GmbH 50625PA7035/3X6	Seal	100 °C	-40 °C	8 mm	0.315 in	Gray	IP65 - Dust Tight Water Resistant	M25x1.5	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M25x1.5 Gray
