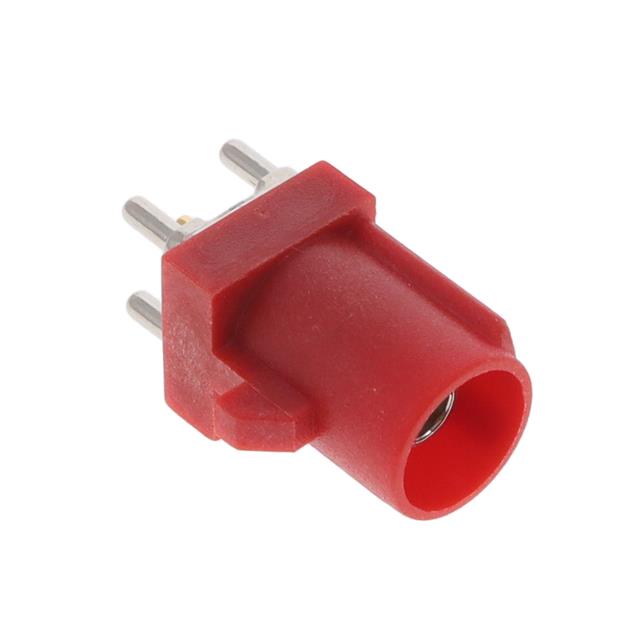

FK0MLPCB

Active

TAOGLAS

FAKRA CODE L SMB(M)ST FOR PCB CA

Search across all available documentation for this part.

Active

TAOGLAS

FAKRA CODE L SMB(M)ST FOR PCB CA

Technical Specifications

Parameters and characteristics commom to parts in this series

FAKRA GEN 1 CODE L CARMINE RED M

Part	Mating Cycles	Contact Termination	Shield Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Features	Impedance	Number of Ports	Housing Color	Fastening Type	Connector Style	Mounting Type	Frequency - Max [Max]	Connector Type
TAOGLAS FK0MLDK	25	Crimp	Crimp	316, RG-174	-40 °C	105 ░C	Code L	50 Ohms	1	Carmine, Red	Locking Ramp	Fakra, SMB	Free Hanging (In-Line)	6000 MHz	Male Pin, Plug
TAOGLAS FK0MLPCB
TAOGLAS FK0MLG	25	Crimp	Crimp	316, RG-174	-40 °C	105 ░C	Code L	50 Ohms	1	Carmine, Red	Locking Ramp	Fakra, SMB	Free Hanging (In-Line)	6000 MHz	Male Pin, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector

Technical documentation and resources
