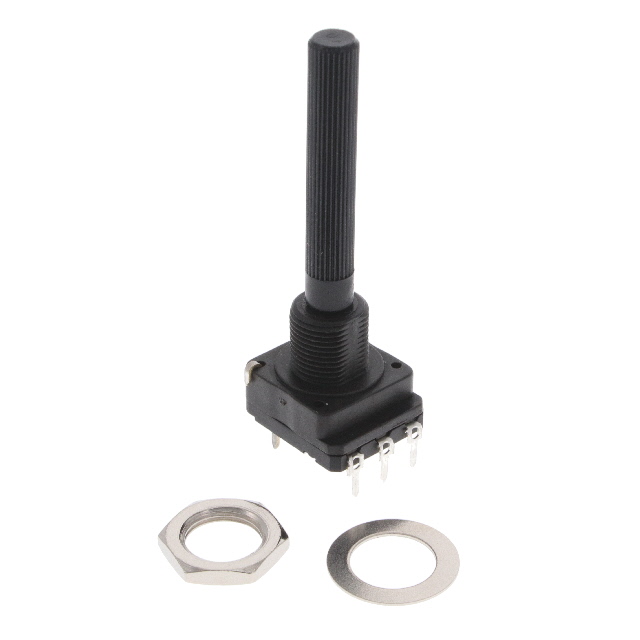

PC16SV-10IP06-255A2020-TA

Active

Amphenol Piher Sensing Systems

POT 2.5M OHM 1/5W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PC16SV-10IP06-255A2020-TA

Active

Amphenol Piher Sensing Systems

POT 2.5M OHM 1/5W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PC16SV-10IP06-255A2020-TA	PC16SV Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	0.63 - 1.398 in
Actuator Length	-	16 - 35.5 mm
Actuator Length	-	18.5 - 19 mm
Actuator Length	-	0.728 in
Actuator Type	Knurled	Flatted, Knurled
Adjustment Type	Top Adjustment	Top Adjustment
Built in Switch	False	False
Built in Switch	-	Rotary, SPST
Bushing Thread	M10 x 0.75	M7, M10 x 0.75
Bushing Thread	-	0.75
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.2 W	0.2 W
Power (Watts)	1/5	1/5
Resistance (Ohms)	2.5M	25k, 10k, 2.5M
Resistance (Ohms)	-	5 - 100 kOhms
Resistive Material	Carbon	Carbon
Rotation	300 ░	300 ░
Size - Body [x]	18 mm	18 mm
Size - Body [x]	0.709 "	0.709 "
Size - Body [y]	0.63 in	0.63 in
Size - Body [y]	16 mm	16 mm
Taper	Linear	Linear
Temperature Coefficient	300 ppm/°C	300 ppm/°C
Termination Style	PC Pins	PC Pins
Tolerance	20 %	20 %

PC16SV Series

POT 25K OHM 1/5W CARBON LINEAR

Part	Number of Turns	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Number of Gangs	Adjustment Type	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Rotation	Tolerance	Actuator Length [z]	Actuator Length [z]	Temperature Coefficient	Bushing Thread	Bushing Thread	Termination Style	Power (Watts)	Power (Watts)	Taper	Resistance (Ohms)	Resistive Material	Actuator Length	Actuator Length [x]	Built in Switch	Resistance (Ohms)
Amphenol Piher Sensing Systems PC16SV-07IP19-253A2020-TA	1	0.236 in	6 mm	Flatted	1	Top Adjustment	18 mm	0.63 in	16 mm	0.709 "	300 ░	20 %	0.63 in	16 mm	300 ppm/°C	0.75	M7	PC Pins	0.2 W	1/5	Linear	25k	Carbon
Amphenol Piher Sensing Systems PC16SV-10IP12-103A2020-TA	1	0.236 in	6 mm	Flatted	1	Top Adjustment	18 mm	0.63 in	16 mm	0.709 "	300 ░	20 %	0.846 in	21.5 mm	300 ppm/°C		M10 x 0.75	PC Pins	0.2 W	1/5	Linear	10k	Carbon
Amphenol Piher Sensing Systems PC16SV-10IP18-104A2020-I-TA	1	0.236 in	6 mm	Flatted	1	Top Adjustment	18 mm	0.63 in	16 mm	0.709 "	300 ░	20 %			300 ppm/°C		M10 x 0.75	PC Pins	0.2 W	1/5	Linear		Carbon	18.5 mm	0.728 in	Rotary, SPST	100 kOhms
Amphenol Piher Sensing Systems PC16SV-10IP05-502A2020-TA	1	0.236 in	6 mm	Knurled	1	Top Adjustment	18 mm	0.63 in	16 mm	0.709 "	300 ░	20 %	1.398 in	35.5 mm	300 ppm/°C		M10 x 0.75	PC Pins	0.2 W	1/5	Linear		Carbon				5 kOhms
Amphenol Piher Sensing Systems PC16SV-10IP06-255A2020-TA	1	0.236 in	6 mm	Knurled	1	Top Adjustment	18 mm	0.63 in	16 mm	0.709 "	300 ░	20 %			300 ppm/°C		M10 x 0.75	PC Pins	0.2 W	1/5	Linear	2.5M	Carbon
Amphenol Piher Sensing Systems PC16SV-07IP17-503A2020-TA	1	0.236 in	6 mm	Knurled	1	Top Adjustment	18 mm	0.63 in	16 mm	0.709 "	300 ░	20 %	0.748 in		300 ppm/°C	0.75	M7	PC Pins	0.2 W	1/5	Linear		Carbon	19 mm			50 kOhms
