R125052002

Active

Radiall USA, Inc.

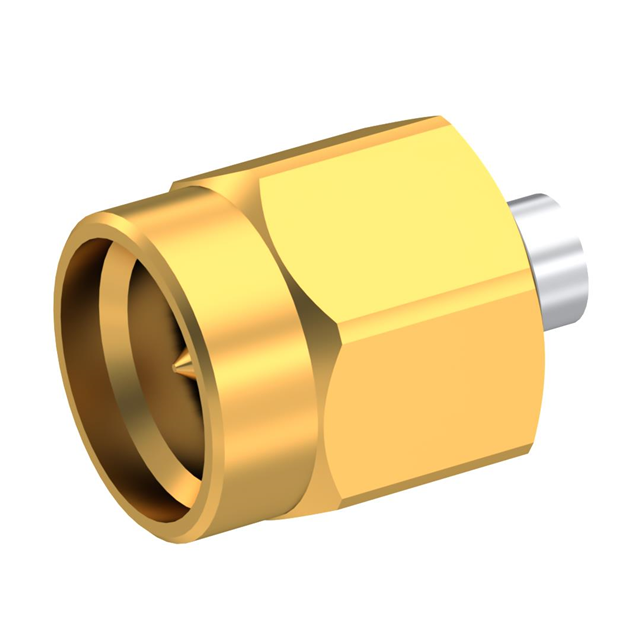

RF SMA CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMA CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	R125052002

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	27 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Center Contact Material	Frequency - Max [Max]	Body Material	Impedance	Connector Type	Contact Termination	Connector Style	Shield Termination	Body Finish	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Dielectric Material	Voltage Rating	Mounting Type	Center Contact Plating	Number of Ports
Radiall USA, Inc. R125052002	Brass	27 GHz	Stainless Steel	50 Ohms	Male Pin Plug	Solder	SMA	Solder	Gold	Gold	-65 ░C	165 °C	RG-405 (.085" Semi Rigid)	Polytetrafluoroethylene (PTFE)	335 V	Free Hanging (In-Line)	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
