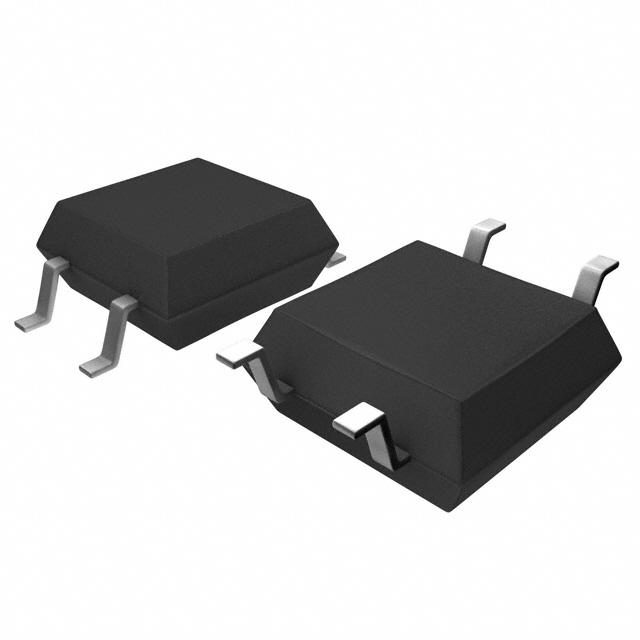

DB101S-HF

Active

Comchip Technology

BRIDGE RECT 1PHASE 50V 1A DBS

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 50V 1A DBS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 50 V Surface Mount DBS

Technical documentation and resources

No documents available

Specification	DB101S-HF	DB101 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing
Supplier Device Package	DBS	DBS
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	50 V	50 V

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Technology	Voltage - Peak Reverse (Max) [Max]	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Supplier Device Package
Comchip Technology DB101SP-HF	1.1 V	10 µA	Surface Mount	4-SMD, Gull Wing	Standard	50 V	Single Phase	-55 °C	150 °C	1 A	DBS
Comchip Technology DB101ST-HF	1.1 V	10 µA	Surface Mount	4-SMD, Gull Wing	Standard	50 V	Single Phase	-55 °C	150 °C	1 A	DBS
Comchip Technology DB101S-HF	1.1 V	10 µA	Surface Mount	4-SMD, Gull Wing	Standard	50 V	Single Phase	-55 °C	150 °C	1 A	DBS
