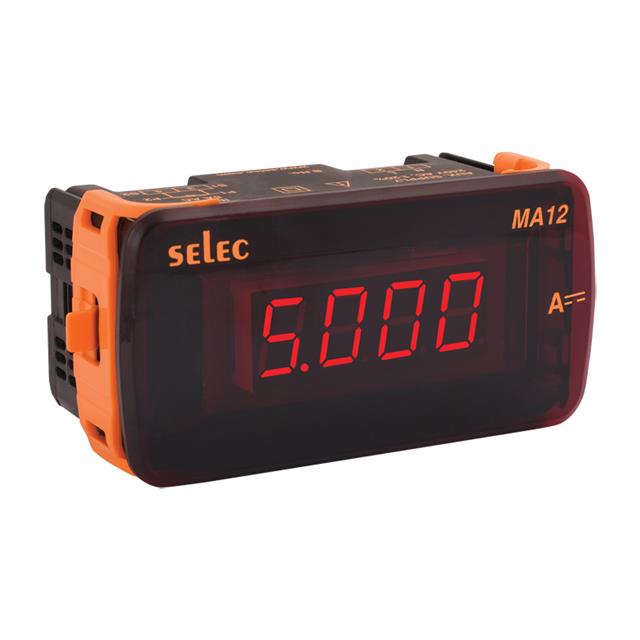

MA12-100MV-DC-110V-CU-ROHS

Active

Selec Controls USA Inc.

DC LED AMP METER

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

DC LED AMP METER

Technical Specifications

Parameters and characteristics for this part

Specification	MA12-100MV-DC-110V-CU-ROHS

Display Characters - Height [z]	0.56 in
Display Characters - Height [z]	14.22 mm
Display Type	LCD - Red Characters
Ingress Protection	IP51 - Dust Protected
Measuring Range [Max]	4960 A
Measuring Range [Min]	0 A
Measuring Type	Current
Number of Characters Per Row	4
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	46 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply	110 VAC/DC

DC LED AMP METER

Part	Measuring Range [Max]	Measuring Range [Min]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Number of Characters Per Row	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Ingress Protection	Type	Display Characters - Height [z]	Display Characters - Height [z]	Voltage - Supply	Display Type
Selec Controls USA Inc. MA12-100MV-DC-110V-CU-ROHS	4960 A	0 A	55 °C	-10 °C	4	Current	92 mm	46 mm	Screw Terminal	IP51 - Dust Protected	Ammeter	0.56 in	14.22 mm	110 VAC/DC	LCD - Red Characters

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ammeter LCD - Red Characters Display Panel Mount
