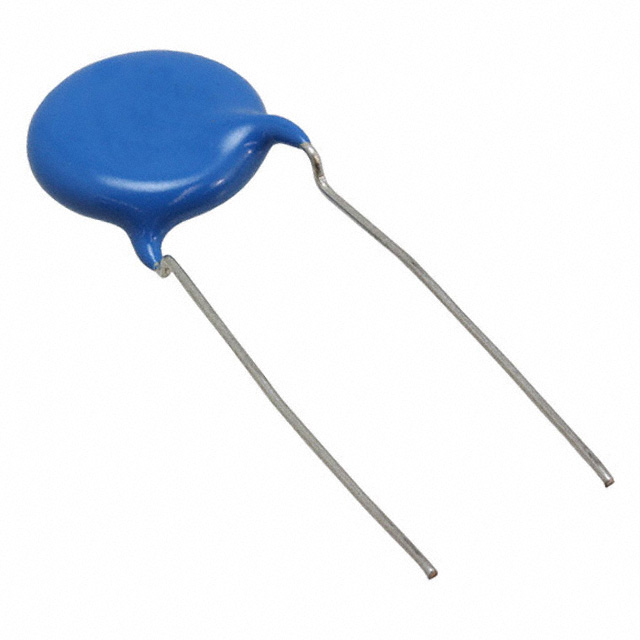

C715U102MYWDBAWL25
ActiveKEMET
CAP CER 1000PF 400VAC Y5U RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
C715U102MYWDBAWL25
ActiveKEMET
CAP CER 1000PF 400VAC Y5U RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C715U102MYWDBAWL25 |
|---|---|
| Applications | Safety |
| Capacitance | 0.001 µF |
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Disc, Radial |
| Ratings [custom] | 2 |
| Ratings [custom] | 1 |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Temperature Coefficient | Y5U (E) |
| Tolerance | 20 % |
| Voltage - Rated | 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.33 | |
| 10 | $ 0.22 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| 4000 | $ 0.08 | |||
Description
General part information
C715U Series
1000 pF ±20% 400VAC Ceramic Capacitor Y5U (E) Radial, Disc
