210-93-640-41-001000
ActiveMill-Max Manufacturing Corp.

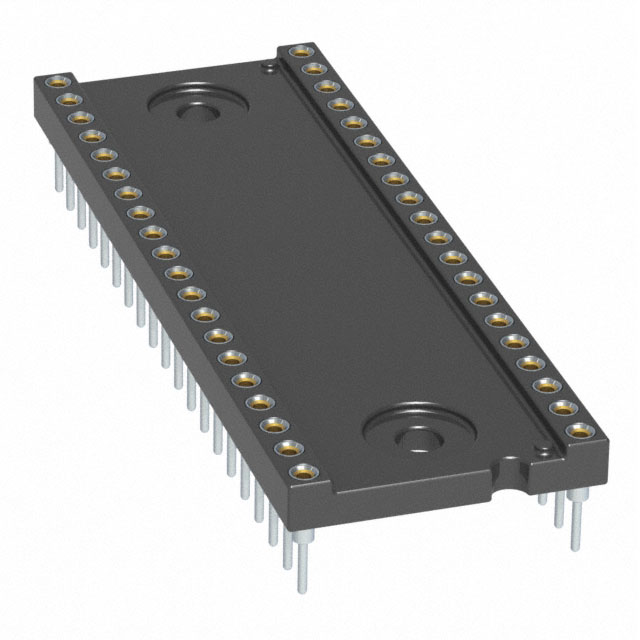

CONN IC DIP SOCKET 40POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
210-93-640-41-001000
ActiveMill-Max Manufacturing Corp.
CONN IC DIP SOCKET 40POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 210-93-640-41-001000 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Brass Alloy |
| Current Rating (Amps) | 3 A |
| Features | Closed Frame |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
210-93 Series
| Part | Pitch - Mating | Pitch - Mating | Type | Type | Type | Mounting Type | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Material - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Contact Resistance | Current Rating (Amps) | Contact Finish - Mating | Termination Post Length | Termination Post Length | Housing Material | Features | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Post | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 2 | 6 | 3 | 200 µin | 5.08 µm | Solder | 10 mOhm | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | UL94 V-0 | -55 °C | 125 °C | Brass Alloy | |||
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 200 µin | 5.08 µm | Solder | 10 mOhm | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | UL94 V-0 | -55 °C | 125 °C | Brass Alloy | 36 | |||||
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 200 µin | 5.08 µm | Solder | 10 mOhm | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | UL94 V-0 | -55 °C | 125 °C | Brass Alloy | 18 | |||||
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 200 µin | 5.08 µm | Solder | 10 mOhm | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | UL94 V-0 | -55 °C | 125 °C | Brass Alloy | 22 | |||||
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 200 µin | 5.08 µm | Solder | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | -55 °C | 125 °C | Brass Alloy | 14 | |||||||
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 2 | 20 | 200 µin | 5.08 µm | Solder | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | -55 °C | 125 °C | Brass Alloy | 40 | |||||
Mill-Max Manufacturing Corp. | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Through Hole | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | Tin-Lead | Beryllium Copper | 200 µin | 5.08 µm | Solder | 10 mOhm | 3 A | Gold | 3.18 mm | 0.125 in | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Closed Frame | UL94 V-0 | -55 °C | 125 °C | Brass Alloy | 2 x 5 | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.94 | |
| 10 | $ 4.49 | |||
| 30 | $ 4.25 | |||
| 50 | $ 4.15 | |||
| 100 | $ 3.95 | |||
| 250 | $ 3.46 | |||
| 500 | $ 3.36 | |||
| 1000 | $ 2.86 | |||
| 2500 | $ 2.67 | |||
Description
General part information
210-93 Series
40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
Documents
Technical documentation and resources
No documents available
