1-1411325-3

Active

TE Connectivity AMP Connectors

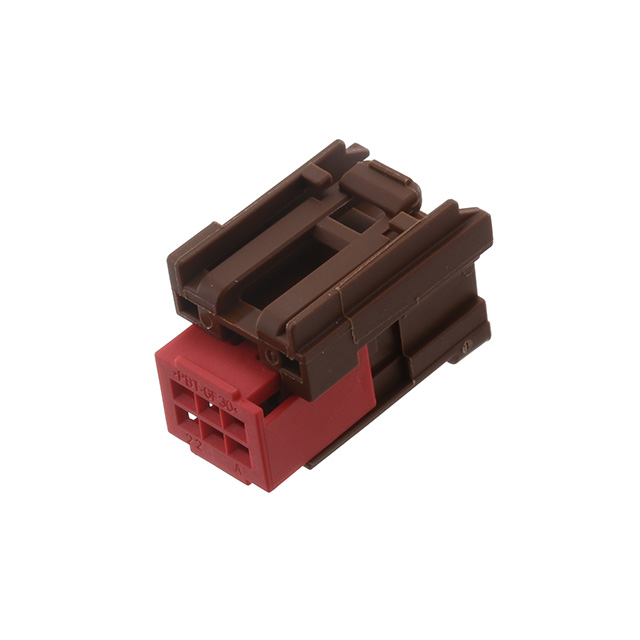

CONN RCPT HSG 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1411325-3	1411325 Series

	-	-
Color	Brown	Blue, Green, Brown, Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	2	2
Operating Temperature	-	100 °C
Operating Temperature	-	-40 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

CONN RCPT HSG 6POS 2.54MM

Part	Pitch [x]	Pitch [x]	Contact Termination	Row Spacing [x]	Row Spacing	Insulation Material	Number of Rows	Contact Type	Note	Mounting Type	Number of Positions	Connector Type	Color	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1-1411325-4	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	2	Female Socket	Contacts Not Included	Free Hanging (In-Line)	6	Receptacle	Blue
TE Connectivity AMP Connectors 1-1411325-1	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	2	Female Socket	Contacts Not Included	Free Hanging (In-Line)	6	Receptacle	Green
TE Connectivity AMP Connectors 9-1411325-5
TE Connectivity AMP Connectors 1-1411325-3	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	2	Female Socket	Contacts Not Included	Free Hanging (In-Line)	6	Receptacle	Brown
TE Connectivity AMP Connectors 9-1411325-1	2.54 mm	0.1 in	Crimp	0.1 in	2.54 mm	Polyamide (PA66), Nylon 6/6, Glass Filled	2	Female Socket	Contacts Not Included	Free Hanging (In-Line)	6	Receptacle	Black	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Brown 0.100" (2.54mm)
