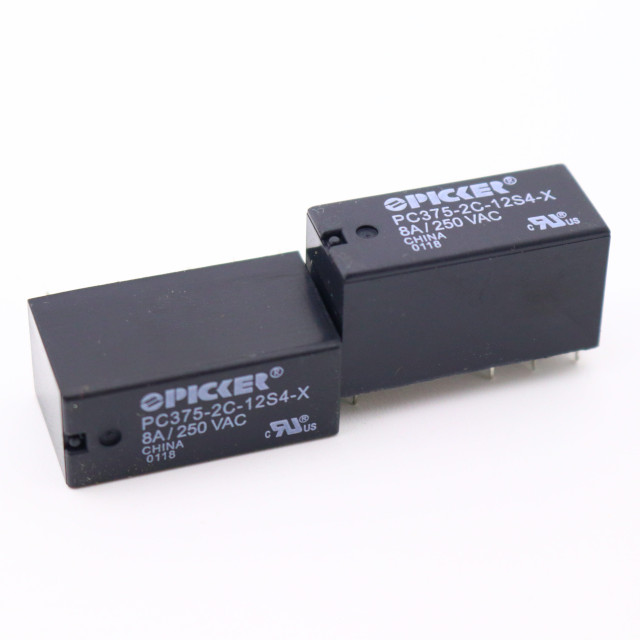

PC375-2C-12S4-X

Active

Picker Components

RELAY GEN PURPOSE DPDT 16A 12V

Search across all available documentation for this part.

Active

Picker Components

RELAY GEN PURPOSE DPDT 16A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE DPDT 16A 12V

Part	Coil Type	Coil Resistance	Contact Rating (Current)	Coil Current	Load - Max Switching	Operate Time	Relay Type	Seal Rating	Switching Voltage	Must Release Voltage	Coil Voltage	Contact Form	Termination Style	Must Operate Voltage	Coil Insulation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Material
Picker Components PC375-2C-12S4-X	Non Latching	351 Ohms	8 A	34.2 mA	1760 W, 6080 VA	15 ms	General Purpose	Sealed - Fully	110 VDC, 380 VAC	1.2 VDC	12 VDC	DPDT (2 Form C)	PC Pin	8.4 VDC	Class F	Through Hole	85 °C	-40 °C	8 ms	Silver Tin Oxide (AgSnO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
