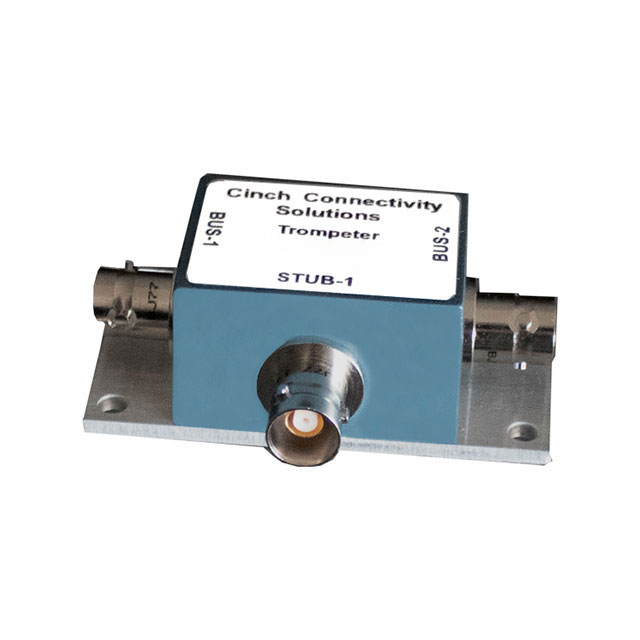

TEBC-1001

Active

Cinch Connectivity Solutions Trompeter

MIL-STD-1553 DATA BUS COUPLER, 1

Deep-Dive with AI

Search across all available documentation for this part.

TEBC-1001

Active

Cinch Connectivity Solutions Trompeter

MIL-STD-1553 DATA BUS COUPLER, 1

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 285.93
		10	$ 272.31

Description

General part information

TEBC-10 Series

Adapter Coaxial Connector TRB Twinaxial/Triaxial Jack, Female Socket To TRB Twinaxial/Triaxial Jack, Female Socket (2)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TEBC-1001	TEBC-10 Series

Adapter Series	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial, Dual	TRB Twinaxial/Triaxial, Dual, Octa to TRB Twinaxial/Triaxial, Triple to TRB Twinaxial/Triaxial, Quad to TRB Twinaxial/Triaxial, Quint to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial, Dual, TRB Twinaxial/Triaxial, Dual to TRB Twinaxial/Triaxial, Dual
Adapter Type	Jack to Jack	Jack to Jack
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	TRB Twinaxial/Triaxial Jack, Female Socket	TRB Twinaxial/Triaxial Jack, Female Socket (8), TRB Twinaxial/Triaxial Jack, Female Socket (3), TRB Twinaxial/Triaxial Jack, Female Socket (4), TRB Twinaxial/Triaxial Jack, Female Socket (5), TRB Twinaxial/Triaxial Jack, Female Socket, TRB Twinaxial/Triaxial Jack, Female Socket (2)
Convert To (Adapter End)	TRB Twinaxial/Triaxial Jack, Female Socket (2)	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Fastening Type	Bayonet Lock	Bayonet Lock
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C

TEBC-10 Series

MIL-STD-1553 DATA BUS COUPLER, 8

Part	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Adapter Type	Adapter Series	Mounting Type	Center Gender	Fastening Type	Convert To (Adapter End)
Cinch Connectivity Solutions Trompeter TEBC-1008	TRB Twinaxial/Triaxial Jack, Female Socket (8)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, Octa to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1008-LF	TRB Twinaxial/Triaxial Jack, Female Socket (8)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, Octa to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1003	TRB Twinaxial/Triaxial Jack, Female Socket (3)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, TRB Twinaxial/Triaxial, Triple to TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1004	TRB Twinaxial/Triaxial Jack, Female Socket (4)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, Quad to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1005	TRB Twinaxial/Triaxial Jack, Female Socket (5)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, Quint to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1004-LF	TRB Twinaxial/Triaxial Jack, Female Socket (4)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, Quad to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1005-LF	TRB Twinaxial/Triaxial Jack, Female Socket (5)	-55 °C	125 °C	Same Series	Jack to Jack	Dual, Quint to TRB Twinaxial/Triaxial, TRB Twinaxial/Triaxial	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1001	TRB Twinaxial/Triaxial Jack, Female Socket	-55 °C	125 °C	Same Series	Jack to Jack	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial, Dual	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1002	TRB Twinaxial/Triaxial Jack, Female Socket (2)	-55 °C	125 °C	Same Series	Jack to Jack	TRB Twinaxial/Triaxial, Dual to TRB Twinaxial/Triaxial, Dual	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
Cinch Connectivity Solutions Trompeter TEBC-1001-LF	TRB Twinaxial/Triaxial Jack, Female Socket	-55 °C	125 °C	Same Series	Jack to Jack	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial, Dual	Free Hanging (In-Line)	Female to Female	Bayonet Lock	TRB Twinaxial/Triaxial Jack, Female Socket (2)
