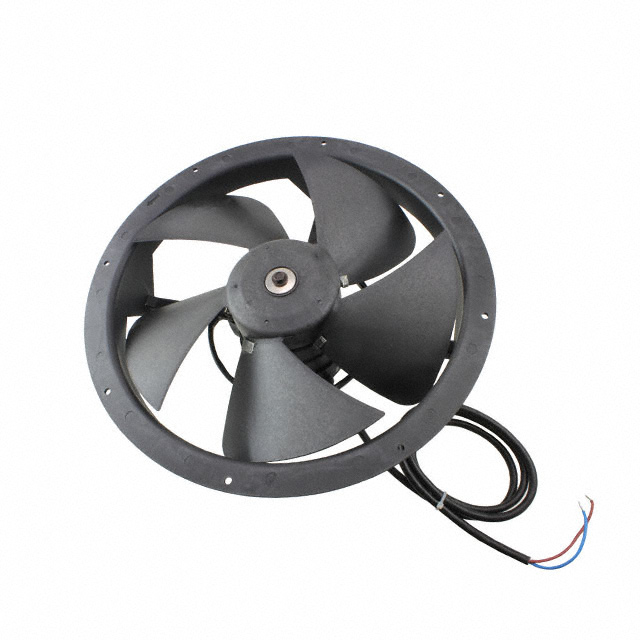

AFL28A2LU-BRA01

Active

Delta Electronics

FAN AXIAL 280X105MM 230VAC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 280X105MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AFL28A2LU-BRA01

Air Flow	12.88 m³/min
Air Flow	460 CFM
Approval Agency	TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	60000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	16 W
RPM	1400 RPM
Size / Dimension	Round
Size / Dimension [diameter]	280 mm
Static Pressure	107.1 Pa
Static Pressure	0.43 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	2.5 lbs
Weight	1.1 kg
Width [y]	105 mm

Part	Air Flow	Air Flow	Bearing Type	Approval Agency	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Size / Dimension	Size / Dimension [diameter]	Static Pressure	Static Pressure	RPM	Lifetime @ Temp.	Fan Type	Weight	Weight	Width [y]	Power (Watts)	Ingress Protection	Voltage - Rated	Material - Blade	Material - Frame
Delta Electronics AFL28A2LU-BRA01	12.88 m³/min	460 CFM	Ball	TUV UL	55 dB	60 °C	-20 °C	-20 C	60 °C	2 Wire Leads	Round	280 mm	107.1 Pa	0.43 in H2O	1400 RPM	60000 Hrs	Tubeaxial	2.5 lbs	1.1 kg	105 mm	16 W	IP55 - Dust Protected Water Resistant	230 VAC	Plastic	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	288	$ 64.31

General part information

Fan Tubeaxial 230VAC Round - 280mm Dia Ball 460.0 CFM (12.88m³/min) 2 Wire Leads
