C1BXG-2036M

Active

CW Industries

IDC CABLE - CSR20G/AE20M/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR20G/AE20M/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

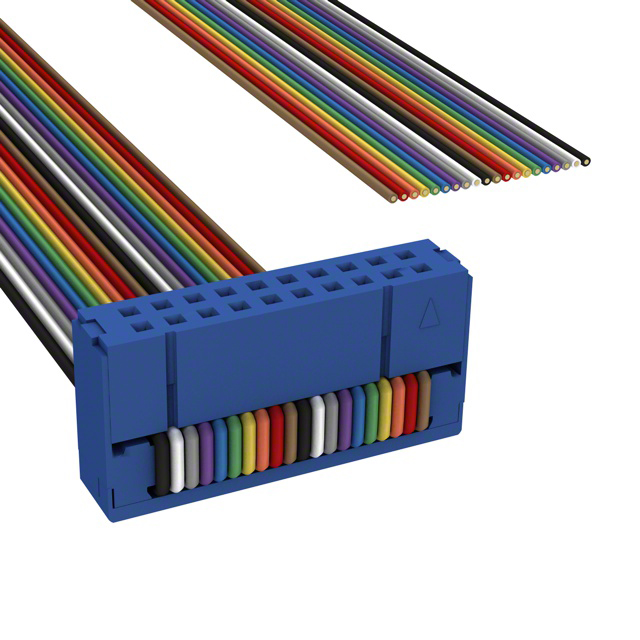

20 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Technical documentation and resources

Part	Shielding	Number of Rows	Features	Color	Pitch - Connector	Pitch - Connector	Connector Type	Number of Positions	Contact Finish	Cable Termination	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable
CW Industries C1BXG-2036M	Unshielded	2	Strain Relief	Multiple, Ribbon	0.1 in	2.54 mm	Socket to Cable	20	Gold	IDC	3 ft	914.4 mm	10 Áin	0.25 Ám	0.05 "	1.27 mm
CW Industries C1BXG-2636G	Unshielded	2	Strain Relief		0.1 in	2.54 mm	Socket to Cable	26	Gold	IDC	3 ft	914.4 mm	10 Áin	0.25 Ám	0.05 "	1.27 mm
