163A18769X

Active

Amphenol CONEC

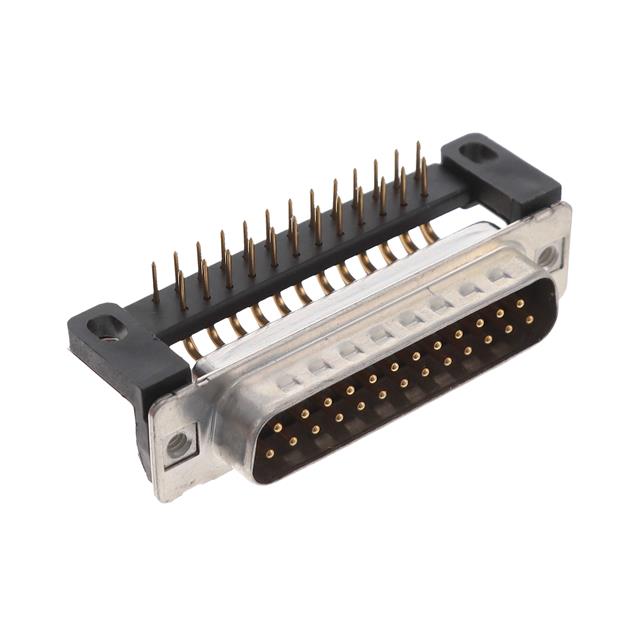

CONN D-SUB PLUG 25POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 25POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	163A18769X

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Type	Signal
Features	Grounding Indents
Flange Feature	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	125 VDC

Part	Shell Size, Connector Layout	Current Rating (Amps)	Backset Spacing	Backset Spacing	Dielectric Material	Connector Type	Connector Style	Termination	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Contact Finish	Flange Feature	Color	Contact Type	Features	Mounting Type	Number of Rows	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 163A18709X	5	7.5 A	9.4 mm	0.37 in	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	D-Sub	Solder	8 çin	0.203 çm	UL94 V-0	-55 °C	125 °C	50	Copper Alloy	Gold	Housing/Shell (4-40)	Black	Signal	Board Lock Grounding Indents	Board Edge Right Angle Through Hole	3	125 VDC
Amphenol CONEC 163A18769X						Male Pins Plug	D-Sub	Solder				-55 °C	125 °C			Gold	Housing/Shell (4-40)		Signal	Grounding Indents	Through Hole Right Angle	2	125 VDC	B DB	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 14.23

General part information

25 Position D-Sub Plug, Male Pins Connector
