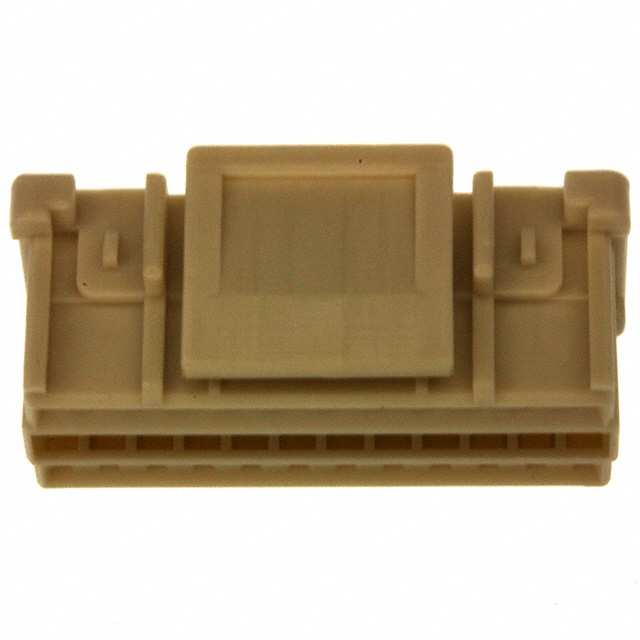

PNDP-24V-Z
ActiveJST Sales America Inc.
CONN RCPT HSG 24POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
PNDP-24V-Z
ActiveJST Sales America Inc.
CONN RCPT HSG 24POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PNDP-24V-Z |
|---|---|
| Color | Ivory |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 5 mm |
| Row Spacing | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.22 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.12 | |||
Description
General part information
PNDP-24V Series
24 Rectangular Connectors - Housings Receptacle Ivory 0.079" (2.00mm)
