20020009-H021B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 2POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20020009-H021B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 2POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020009-H021B01LF	20020009 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	12 A	12 A
Features	Retention Latches (Wire Side), Mating Flange	Retention Latches (Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	1.024 "	1.024 "
Insulation Height	26.01 mm	26.01 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 10
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Plug Wire Entry	90 °	90 °
Positions Per Level	2	2 - 10
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.4 Nm	0.4 Nm
Torque - Screw	3.5 Lb-In	3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

20020009 Series

TERM BLOCK PLUG 10POS 90DEG 5MM

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Plug Wire Entry	Pitch [x]	Pitch [x]	Contact Material	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Housing Material	Number of Positions	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Levels	Torque - Screw	Torque - Screw	Termination Style	Mounting Type	Positions Per Level	Voltage - UL	Features	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Screw Size	Contact Mating Finish	Color	Material Flammability Rating
AMPHENOL ANYTEK 20020009-G101B01LF	24 AWG	12 AWG	12 A	90 °	5 mm	0.197 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	10	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	10	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
AMPHENOL ANYTEK 20020009-H041B01LF	24 AWG	12 AWG	12 A	90 °	5.08 mm	0.2 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	4	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	4	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
AMPHENOL ANYTEK 20020009-H021B01LF	24 AWG	12 AWG	12 A	90 °	5.08 mm	0.2 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	2	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	2	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
AMPHENOL ANYTEK 20020009-G081B01LF	24 AWG	12 AWG	12 A	90 °	5 mm	0.197 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	8	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	8	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2560	$ 0.45

Description

General part information

20020009 Series

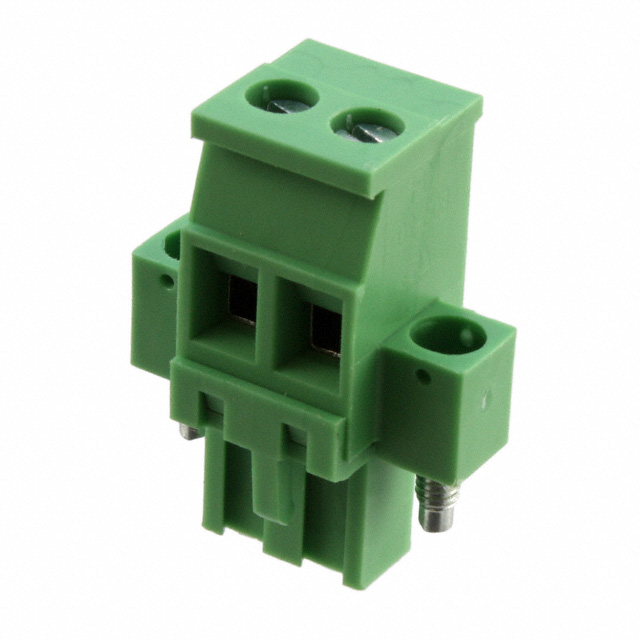

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
