20020009-G081B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 8POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20020009-G081B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 8POS 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.75
		10	$ 2.67
		25	$ 2.34
		55	$ 2.10
		110	$ 1.93
		275	$ 1.75
		550	$ 1.65
		1045	$ 1.58
		5005	$ 1.45

Description

General part information

20020009 Series

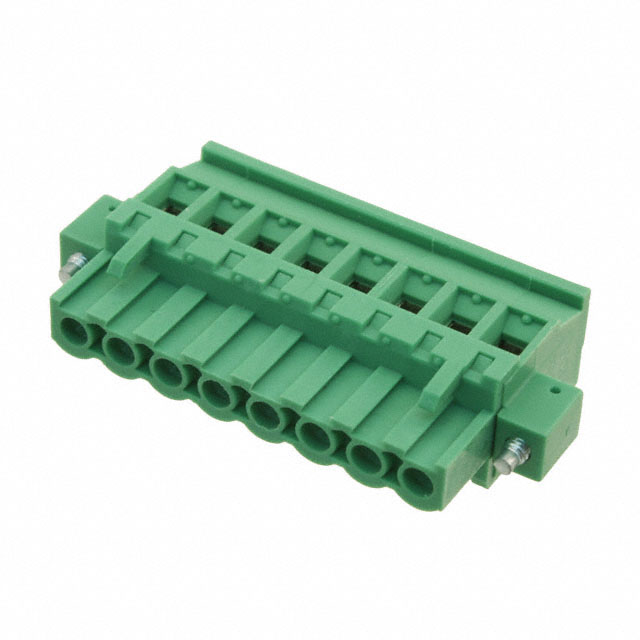

8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020009-G081B01LF	20020009 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	12 A	12 A
Features	Retention Latches (Wire Side), Mating Flange	Retention Latches (Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	1.024 "	1.024 "
Insulation Height	26.01 mm	26.01 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	8	2 - 10
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Plug Wire Entry	90 °	90 °
Positions Per Level	8	2 - 10
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.4 Nm	0.4 Nm
Torque - Screw	3.5 Lb-In	3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

20020009 Series

TERM BLOCK PLUG 10POS 90DEG 5MM

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Plug Wire Entry	Pitch [x]	Pitch [x]	Contact Material	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Housing Material	Number of Positions	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Levels	Torque - Screw	Torque - Screw	Termination Style	Mounting Type	Positions Per Level	Voltage - UL	Features	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Screw Size	Contact Mating Finish	Color	Material Flammability Rating
AMPHENOL ANYTEK 20020009-G101B01LF	24 AWG	12 AWG	12 A	90 °	5 mm	0.197 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	10	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	10	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
AMPHENOL ANYTEK 20020009-H041B01LF	24 AWG	12 AWG	12 A	90 °	5.08 mm	0.2 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	4	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	4	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
AMPHENOL ANYTEK 20020009-H021B01LF	24 AWG	12 AWG	12 A	90 °	5.08 mm	0.2 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	2	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	2	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
AMPHENOL ANYTEK 20020009-G081B01LF	24 AWG	12 AWG	12 A	90 °	5 mm	0.197 in	Copper Alloy	Plug, Female Sockets	2.5 mm²	1 mm²	Thermoplastic Resin	8	7 mm	6 mm	1	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	Free Hanging (In-Line)	8	300 V	Mating Flange, Retention Latches (Wire Side)	1.024 "	26.01 mm	-40 °C	115 °C	M3	Tin	Green	UL94 V-0
