2121-DKF-0048

Active

Cinch Connectivity Solutions Semflex

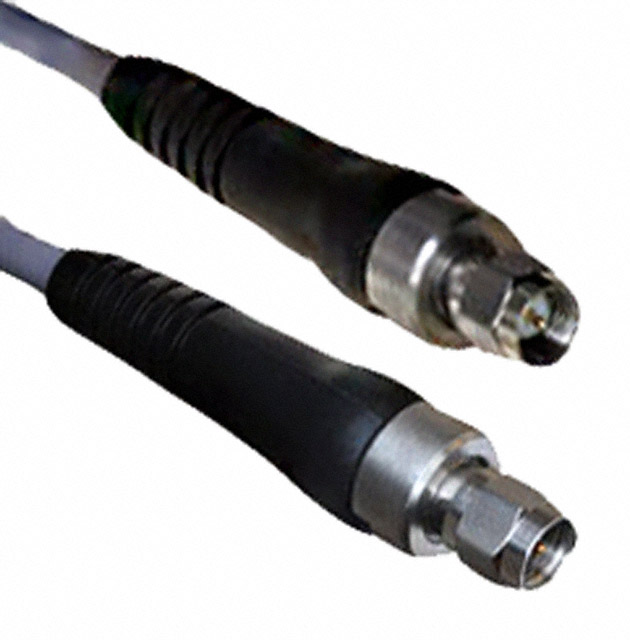

CBL ASSY SMA PLUG TO PLUG 4'

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Semflex

CBL ASSY SMA PLUG TO PLUG 4'

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL ASSY SMA PLUG TO PLUG 24"

Part	Overall Impedance	1st Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Features	Color	1st Connector	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	Style	2nd Connector Mounting Type	Cable Type	2nd Contact Gender	Length	Length [x]	Length [x]
Cinch Connectivity Solutions Semflex 2121-DKF-0024	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Shielded	Gray	SMA Plug	24 "	609.6 mm	85 °C	-55 °C	SMA Plug	SMA to SMA	Free Hanging (In-Line)	HP 190S	Male
Cinch Connectivity Solutions Semflex 2121-DKF-0048	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Shielded	Gray	SMA Plug	48 in	1200 mm	85 °C	-55 °C	SMA Plug	SMA to SMA	Free Hanging (In-Line)	HP 190S	Male	4 ft
Cinch Connectivity Solutions Semflex 2121-DKF-0012	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Shielded	Gray	SMA Plug	12 "	304.8 mm	85 °C	-55 °C	SMA Plug	SMA to SMA	Free Hanging (In-Line)	HP 190S	Male
Cinch Connectivity Solutions Semflex 2121-DKF-M0150	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Shielded	Gray	SMA Plug	59.1 in	1.5 m	85 °C	-55 °C	SMA Plug	SMA to SMA	Free Hanging (In-Line)	HP 190S	Male	4.9 ft
Cinch Connectivity Solutions Semflex 2121-DKF-0018	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Shielded	Gray	SMA Plug			85 °C	-55 °C	SMA Plug	SMA to SMA	Free Hanging (In-Line)	HP 190S	Male		457.2 mm	457.2 mm
Cinch Connectivity Solutions Semflex 2121-DKF-0060	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Shielded	Gray	SMA Plug	5 '	1.5 m	85 °C	-55 °C	SMA Plug	SMA to SMA	Free Hanging (In-Line)	HP 190S	Male	5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA HP 190S 48.0" (1.2m) 4.0'

Technical documentation and resources

No documents available
