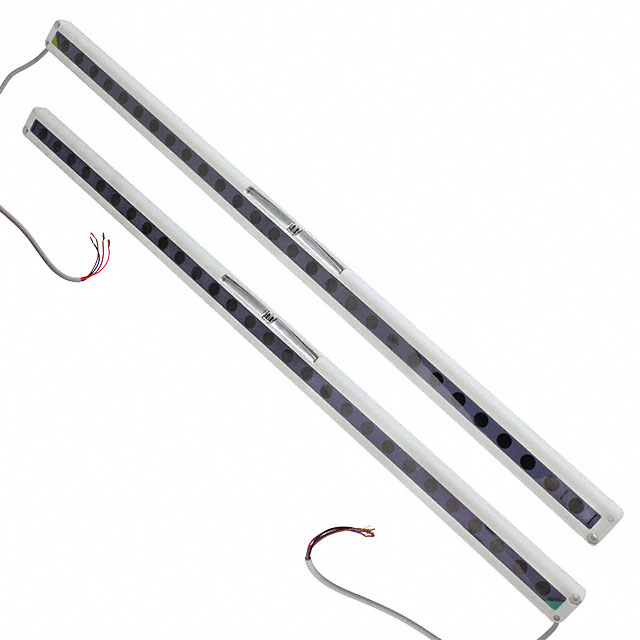

NA2-N28

Active

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 540MM NPN OPEN

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 540MM NPN OPEN

Technical Specifications

Parameters and characteristics for this part

Specification	NA2-N28

Cable Length	118.1 in
Cable Length	3000 mm
Connection Method	Cable
Ingress Protection	IP40
Light Source	Infrared (950nm)
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN - Open Collector
Response Time	10 ms
Sensing Distance	540 mm
Sensing Distance	21.26 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Sensing Method	Connection Method	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Output Configuration	Response Time	Sensing Distance	Sensing Distance	Cable Length	Cable Length	Sensing Distance
Panasonic Industrial Automation Sales NA2-N20	Through-Beam	Cable	IP40	12 V	24 V	Infrared (950nm)	55 °C	-10 °C	NPN - Open Collector	10 ms	380 mm	14.961 in	118.1 in	3000 mm
Panasonic Industrial Automation Sales NA2-N24	Through-Beam	Cable	IP40	12 V	24 V	Infrared (950nm)	55 °C	-10 °C	NPN - Open Collector	10 ms	460 mm	18.11 in	118.1 in	3000 mm
Panasonic Industrial Automation Sales NA2-N28	Through-Beam	Cable	IP40	12 V	24 V	Infrared (950nm)	55 °C	-10 °C	NPN - Open Collector	10 ms	21.26 in		118.1 in	3000 mm	540 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1200.00

General part information

Through-Beam Optical Sensor 21.260" (540mm) NPN - Open Collector
