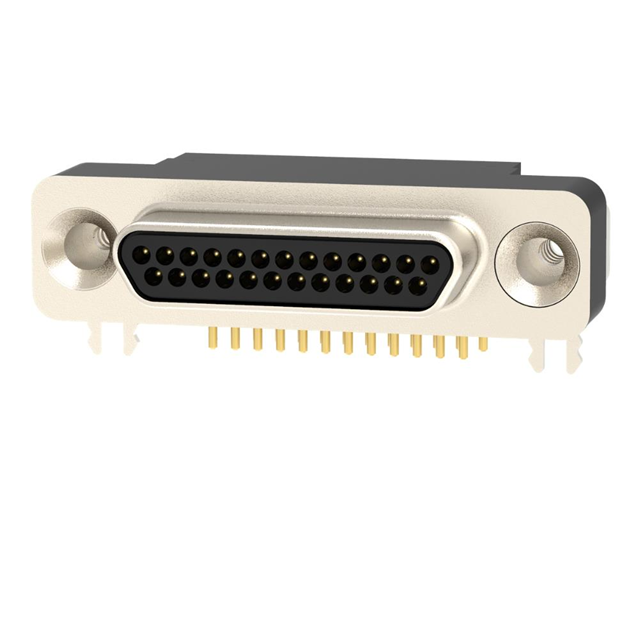

581-M25-113L462

Active

MH Connectors

CONN MICRO-D MALE 25P RA PCB 30U

Search across all available documentation for this part.

Active

MH Connectors

CONN MICRO-D MALE 25P RA PCB 30U

Technical Specifications

Parameters and characteristics for this part

Specification	581-M25-113L462

Backset Spacing	5.6 mm
Backset Spacing	0.22 in
Color	Black
Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded, Board Lock
Flange Feature	Board Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated
Shell Material, Finish [custom]	Brass
Shell Material, Finish [custom]	Steel
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder
Voltage Rating	60 VDC

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Connector Type	Contact Type	Dielectric Material	Number of Rows	Material Flammability Rating	Voltage Rating	Contact Finish	Connector Style	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Backset Spacing	Backset Spacing	Features
MH Connectors 581-M25-213L462	Black	125 °C	-40 °C	2 A	Brass	Steel	Nickel Plated	0.043	0.05	Brass	Receptacle Female Sockets	Signal	Liquid Crystal Polymer (LCP)	2	UL94 V-0	60 VDC	Gold	D-Type Micro-D	Board Side	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Solder	5.6 mm	0.22 in	Board Lock Shielded
MH Connectors 581-M25-113L462	Black	125 °C	-40 °C	2 A	Brass	Steel	Nickel Plated	0.043	0.05	Brass	Male Pins Plug	Signal	Liquid Crystal Polymer (LCP)	2	UL94 V-0	60 VDC	Gold	D-Type Micro-D	Board Side	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Solder	5.6 mm	0.22 in	Board Lock Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Type, Micro-D Plug, Male Pins Connector
