Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74LVC138ABQ,115 | 74LVC138 Series |
|---|---|---|
| - | - | |
| Circuit | 1 x 3:8 | 1 x 3:8 |
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Independent Circuits | 1 | 1 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

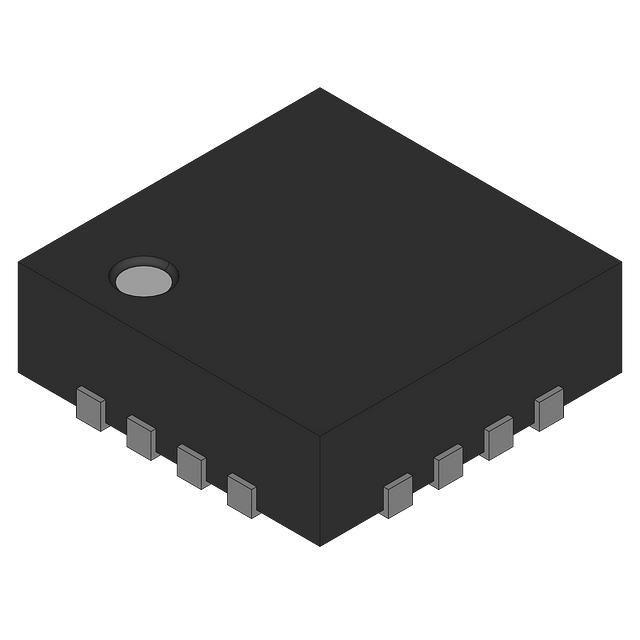

| Package / Case | 16-VFQFN Exposed Pad | 16-TSSOP, 16-VFQFN Exposed Pad |
| Package / Case | - | 0.173 " |
| Package / Case | - | 4.4 mm |
| Supplier Device Package | 16-DHVQFN (2.5x3.5) | 16-TSSOP, 16-DHVQFN (2.5x3.5) |
| Type | Decoder/Demultiplexer | Decoder/Demultiplexer |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 1.2 V | 1.2 V |
| Voltage Supply Source | Single Supply | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
74LVC138 Series
IC DECODER/DEMUX 1X3:8 16TSSOP
| Part | Independent Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Package / Case [x] | Package / Case | Package / Case [x] | Voltage Supply Source | Mounting Type | Circuit | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 125 °C | -40 °C | Decoder/Demultiplexer | 1.2 V | 3.6 V | 24 mA | 24 mA | 0.173 " | 16-TSSOP | 4.4 mm | Single Supply | Surface Mount | 1 x 3:8 | 16-TSSOP | |
NXP USA Inc. 74LVC138APW,118 | |||||||||||||||
NXP USA Inc. 74LVC138APW,112 | |||||||||||||||
NXP USA Inc. 74LVC138ADB,118 | |||||||||||||||
1 | 125 °C | -40 °C | Decoder/Demultiplexer | 1.2 V | 3.6 V | 24 mA | 24 mA | 16-VFQFN Exposed Pad | Single Supply | Surface Mount | 1 x 3:8 | 16-DHVQFN (2.5x3.5) |
Description
General part information
74LVC138 Series
Decoder/Demultiplexer 1 x 3:8 16-DHVQFN (2.5x3.5)
