1453C

Active

Hammond Manufacturing

BOX STEEL GRAY 11"L X 7.12"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 11"L X 7.12"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1453C	1453 Series

Area (L x W)	78.3 in²	58.1 - 230 in²
Area (L x W)	505 cm²	375 - 1484 cm²
Color	Gray	Gray
Container Type	Box	Box
Design	U Shaped Pieces	U Shaped Pieces
Features	Vented Panels, Separate Panel or Cover Thickness	Vented Panels, Separate Panel or Cover Thickness
Height [z]	179.07 mm	153.67 - 306.07 mm
Height [z]	7.05 in	6.05 - 12.05 in
Material	Metal, Steel	Metal, Steel
Size / Dimension [x]	279.4 mm	241.3 - 482.6 mm
Size / Dimension [x]	11 in	9.5 - 19 "
Size / Dimension [y]	7.12 in	6.12 - 12.12 in
Size / Dimension [y]	180.85 mm	155.45 - 307.85 mm
Thickness	16 Gauge	16 Gauge

GRAY STEEL WALL MOUNT INSTRUMENT ENCLOSURE

Part	Container Type	Design	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Features	Material	Height [z]	Height [z]	Color
Hammond Manufacturing 1453N	Box	U Shaped Pieces	16 Gauge	482.6 mm	307.85 mm	19 "	12.12 in	230 in²	1484 cm²	Separate Panel or Cover Thickness, Vented Panels	Metal, Steel	12.05 in	306.07 mm	Gray
Hammond Manufacturing 1453B	Box	U Shaped Pieces	16 Gauge	241.3 mm	155.45 mm	9.5 "	6.12 "	58.1 in²	375 cm²	Separate Panel or Cover Thickness, Vented Panels	Metal, Steel	6.05 in	153.67 mm	Gray
Hammond Manufacturing 1453C	Box	U Shaped Pieces	16 Gauge	279.4 mm	180.85 mm	11 in	7.12 in	78.3 in²	505 cm²	Separate Panel or Cover Thickness, Vented Panels	Metal, Steel	7.05 in	179.07 mm	Gray
Hammond Manufacturing 1453K	Box	U Shaped Pieces	16 Gauge	457.2 mm	257.05 mm	18 in	10.12 "	182 in²	1174 cm²	Separate Panel or Cover Thickness, Vented Panels	Metal, Steel			Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

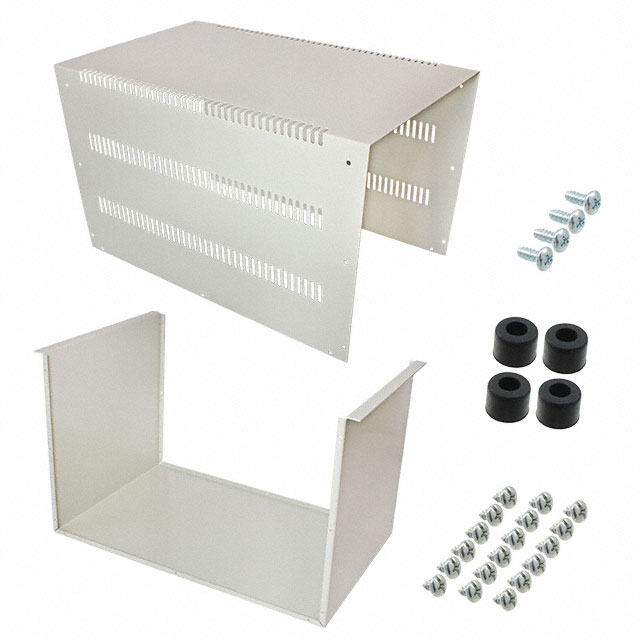

Box Metal, Steel Gray U Shaped Pieces 11.000" L x 7.120" W (279.40mm x 180.85mm) X 7.050" (179.07mm)
