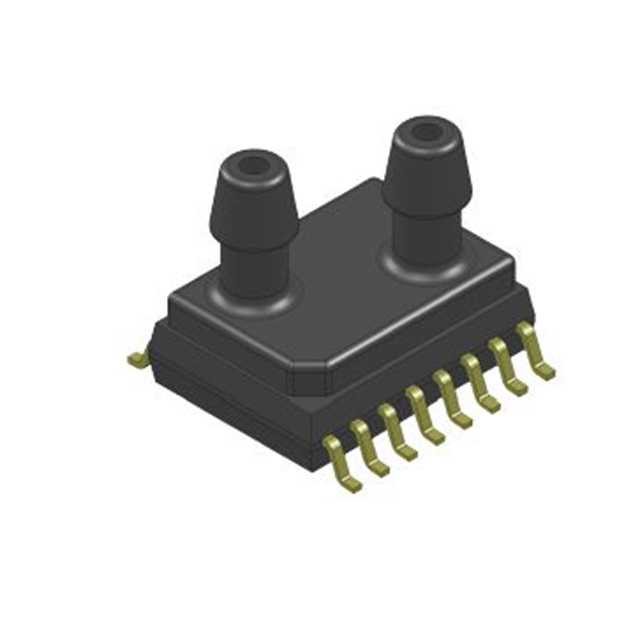

BLCR-L30D-D4

Active

Amphenol All Sensors Corporation

SENSOR 1.08PSID 0.12" .042V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 1.08PSID 0.12" .042V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BLCR-L30D-D4	BLCR-L30D Series

Accuracy	0.5 %	0.5 %
Applications	Board Mount	Board Mount
Maximum Pressure [Max]	7.25 PSI	7.25 PSI
Maximum Pressure [Max]	50 kPa	50 kPa
Mounting Type	Surface Mount	Surface Mount
Operating Pressure	7.47 kPa	7.47 kPa
Operating Pressure	1.08 PSI	1.08 PSI
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	Analog Voltage	Analog Voltage
Package / Case	16-SOIC Module, Dual Top Ports	16-SOIC Module, Dual Top Ports, 6-SMD, Gull Wing, Top Port
Port Size	0.12 "	0.12 "
Port Size	Male, Tube, Dual	Male, Tube, Dual, Male - Tube
Port Size	3 mm	0.12 - 3 mm
Port Style	Barbed	Barbed, Barbless
Pressure Type	Differential	Differential, Gauge
Termination Style	Gull Wing	Gull Wing
Voltage - Supply [Max]	3.3 V	3.3 V
Voltage - Supply [Min]	1.8 V	1.8 V

SENSOR 1.08PSID 0.12" .042V

Part	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Port Style	Accuracy	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Applications	Termination Style	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol All Sensors Corporation BLCR-L30D-D4	Analog Voltage	3.3 V	1.8 V	Surface Mount	Barbed	0.5 %	0.12 "	Dual, Male, Tube	3 mm	7.47 kPa	1.08 PSI	Board Mount	Gull Wing	16-SOIC Module, Dual Top Ports	7.25 PSI	50 kPa	Differential	-25 °C	85 °C
Amphenol All Sensors Corporation BLCR-L30D-U2	Analog Voltage	3.3 V	1.8 V	Surface Mount	Barbless	0.5 %		Male - Tube	0.12 ", 3 mm	7.47 kPa	1.08 PSI	Board Mount	Gull Wing	6-SMD, Gull Wing, Top Port	7.25 PSI	50 kPa	Gauge	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±1.08PSI (±7.47kPa) Differential Male - 0.12" (3mm) Tube, Dual 0 mV ~ 42 mV 16-SOIC Module, Dual Top Ports
