FAA.0S.302.CLA

Active

LEMO

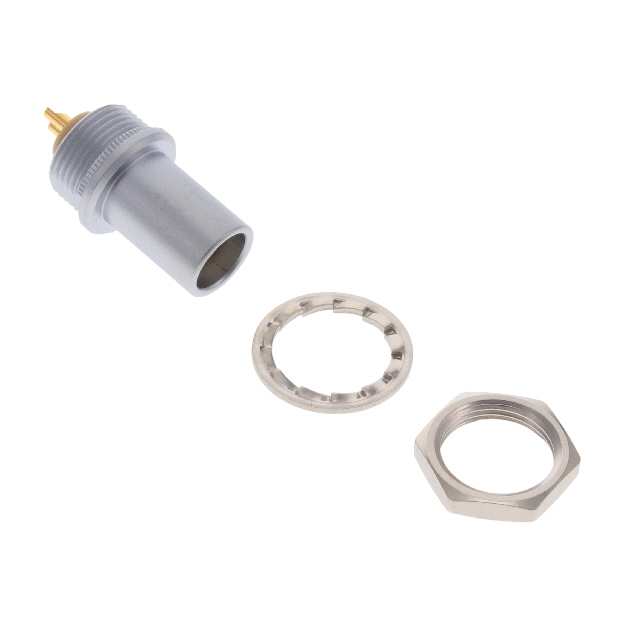

CONN CIRC PLUG 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FAA.0S.302.CLA

Active

LEMO

CONN CIRC PLUG 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAA.0S.302.CLA	FAA.0S Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	178, RG-174
Center Contact Material	-	Beryllium Copper, Brass
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial
Connector Type	Male Pins, Plug, Female Sockets	Male Pins, Plug, Female Sockets, Female Socket, Male Pin
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	10 A	7 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	2	2 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 304
Shield Termination	-	Solder
Shielding	Shielded	Shielded

FAA.0S Series

CONN CIRC PLUG 4P GOLD SLDR CUP

Part	Material Flammability Rating	Shielding	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Color	Primary Material	Fastening Type	Connector Type	Number of Positions	Ingress Protection	Shell Material	Orientation	Shell Size - Insert	Insert Material	Contact Material	Mounting Feature	Dielectric Material	Mating Cycles	Shield Termination	Impedance	Contact Termination	Body Finish	Body Material	Number of Ports	Cable Group	Includes	Center Contact Material	Connector Style	Center Contact Plating	Housing Color
LEMO FAA.0S.304.CLA	UL94 V-0	Shielded	Gold	7 A	-55 °C	250 °C	Chrome	Silver	Metal	Push-Pull	Female Sockets, Male Pins, Plug	4	IP50	Brass	Keyed	304	Polyetheretherketone (PEEK)	Brass, Bronze	Bulkhead - Rear Side Nut
LEMO FAA.0S.650.CTL					-55 °C	250 °C				Push-Pull	Female Socket, Plug		IP50						Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	1000	Solder	50 Ohms	Solder Cup	Chrome	Brass	1	178, RG-174	1 Connector, 1 Nut	Beryllium Copper	Triaxial	Gold	Silver
LEMO FAA.0S.302.CLA	UL94 V-0	Shielded	Gold	10 A	-55 °C	250 °C	Chrome	Silver	Metal	Push-Pull	Female Sockets, Male Pins, Plug	2	IP50	Brass	Keyed	302	Polyetheretherketone (PEEK)	Brass, Bronze	Bulkhead - Rear Side Nut
LEMO FAA.0S.650.CTAY					-55 °C	250 °C				Push-Pull	Male Pin, Plug		IP50						Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	1000	Solder	50 Ohms	Solder Cup	Chrome	Brass	1	178, RG-174	1 Connector, 1 Nut	Brass	Triaxial	Gold	Silver
LEMO FAA.0S.303.CLA	UL94 V-0	Shielded	Gold	7 A	-55 °C	250 °C	Chrome	Silver	Metal	Push-Pull	Female Sockets, Male Pins, Plug		IP50	Brass	Keyed	303	Polyetheretherketone (PEEK)	Brass, Bronze	Bulkhead - Rear Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.00
		10	$ 14.28

Description

General part information

FAA.0S Series

2 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
