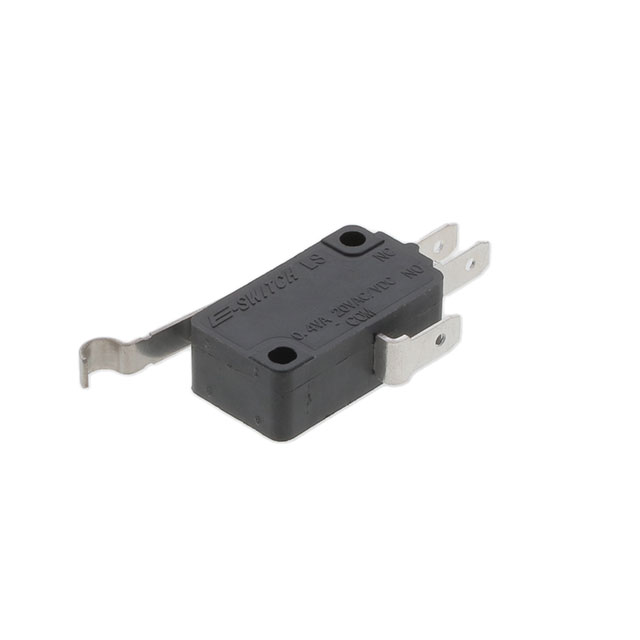

LS085R104F050C1A

Active

E-Switch

SWITCH SNAP ACT SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

LS085R104F050C1A

Active

E-Switch

SWITCH SNAP ACT SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LS085R104F050C1A

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position	19 mm
Operating Position	0.748 "
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pretravel	0.205 in
Pretravel	5.2 mm
Release Force	20 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

LS085R Series

Part	Current Rating (Amps)	Pretravel	Pretravel	Circuit	Electrical Life	Operating Force	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Operating Position	Operating Position	Release Force	Mechanical Life	Mounting Type	Actuator Type
E-Switch LS085R104F050C1A	0.4 VA	0.205 in	5.2 mm	SPDT	50000 Cycles	50 gf	20 V	On-Mom	20 V	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	19 mm	0.748 "	20 gf	1000000 Cycles	Chassis Mount	Lever Simulated Roller
E-Switch LS085R105F160V1A	0.4 VA	0.106 in	2.7 mm	SPDT	50000 Cycles		20 V	On-Mom	20 V	-25 °C	85 °C	PC Pin	20.7 mm	0.815 in		1000000 Cycles	Through Hole Right Angle	Lever Roller
E-Switch LS085R104F050V2B	0.4 VA	0.205 in	5.2 mm	SPST-NC	50000 Cycles	50 gf	20 V	On-Mom	20 V	-25 °C	85 °C	PC Pin	19 mm	0.748 "	20 gf	1000000 Cycles	Through Hole Right Angle	Lever Simulated Roller
E-Switch LS085R101F160V1A	0.4 VA	0.08 in	2 mm	SPDT	50000 Cycles		20 V	On-Mom	20 V	-25 °C	85 °C	PC Pin	15.3 mm	0.602 "		1000000 Cycles	Through Hole Right Angle	Lever Straight
E-Switch LS085R104F085C1A	0.4 VA	0.205 in	5.2 mm	SPDT	50000 Cycles	85 gf	20 V	On-Mom	20 V	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	19 mm	0.748 "	30 gf	1000000 Cycles	Chassis Mount	Lever Simulated Roller
E-Switch LS085R105F100S1A	0.4 VA	0.106 in	2.7 mm	SPDT	50000 Cycles	100 gf	20 V	On-Mom	20 V	-25 °C	85 °C	Solder Lug	20.7 mm	0.815 in	30 gf	1000000 Cycles	Chassis Mount	Lever Roller
E-Switch LS085R100F250C1C	0.4 VA	0.08 in	2 mm	SPST-NO	50000 Cycles	0.25 kgf	20 V	Off-Mom	20 V	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	14.7 mm	0.579 in	50 gf	1000000 Cycles	Chassis Mount	Round (Pin Plunger)
E-Switch LS085R102F120C1C	0.4 VA	0.161 in	4.1 mm	SPST-NO	50000 Cycles	120 gf	20 V	Off-Mom	20 V	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	15.5 mm	0.61 in		1000000 Cycles	Chassis Mount	Lever Straight
E-Switch LS085R102F075C1A	0.4 VA	0.161 in	4.1 mm	SPDT	50000 Cycles	75 gf	20 V	On-Mom	20 V	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	15.5 mm	0.61 in	25 gf	1000000 Cycles	Chassis Mount	Lever Straight
E-Switch LS085R105F160V2A	0.4 VA	0.106 in	2.7 mm	SPDT	50000 Cycles		20 V	On-Mom	20 V	-25 °C	85 °C	PC Pin	20.7 mm	0.815 in		1000000 Cycles	Through Hole Right Angle	Lever Roller

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.23

Description

General part information

LS085R Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
