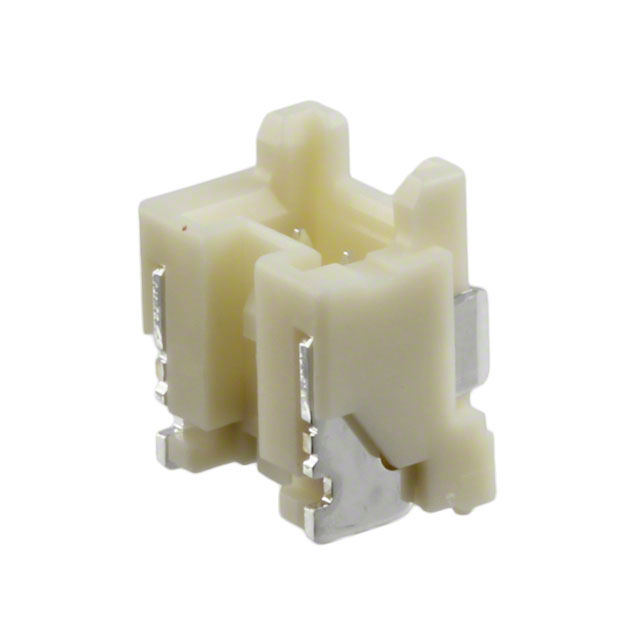

Specification	BM02B-PASS-1-TFT

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Locking Ramp
Features	Solder Retention, Pick and Place, Board Guide
Insulation Color	Natural
Insulation Height	0.35 in
Insulation Material	Nylon, Polyamide (PA)
Mated Stacking Height Options	11.1mm, 16.2mm, 16mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

BM02B-PA Series

Part	Number of Rows	Style	Current Rating	Insulation Color	Insulation Material	Mounting Type	Connector Type	Contact Finish - Post	Number of Positions	Contact Type	Features	Fastening Type	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Pitch - Mating	Number of Positions Loaded	Termination	Insulation Height	Material Flammability Rating	Contact Finish - Mating	Shrouding	Contact Material	Mated Stacking Height Options
JST Sales America Inc. BM02B-PASS-TFT	1	Board Cable/Wire	3 A	Natural	Nylon Polyamide (PA)	Surface Mount	Header	Tin	2	Male Pin	Pick and Place Solder Retention	Locking Ramp	Square	85 °C	-25 °C	250 V	0.079 in	All	Solder	0.35 in	UL94 V-0	Tin	Shrouded - 4 Wall	Copper Alloy	11.1mm 16.2mm 16mm
JST Sales America Inc. BM02B-PASS-1-TFT	1	Board Cable/Wire	3 A	Natural	Nylon Polyamide (PA)	Surface Mount	Header	Tin	2	Male Pin	Board Guide Pick and Place Solder Retention	Locking Ramp	Square	85 °C	-25 °C	250 V	0.079 in	All	Solder	0.35 in	UL94 V-0	Tin	Shrouded - 4 Wall	Copper Alloy	11.1mm 16.2mm 16mm
