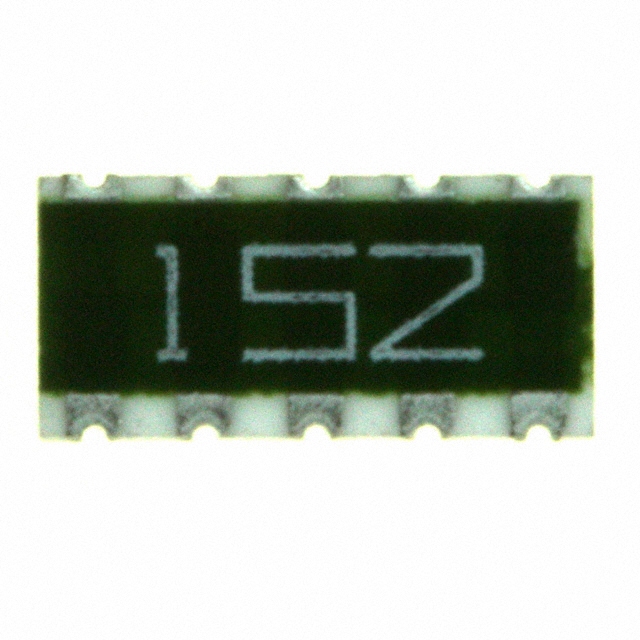

745C102102JP

Active

CTS Resistor Products

RES ARRAY 8 RES 1K OHM 2512

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

745C102102JP

Active

CTS Resistor Products

RES ARRAY 8 RES 1K OHM 2512

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	745C102102JP	745C102 Series

Applications	DDR SDRAM, DRAM, MDDR	DDR SDRAM, DRAM, MDDR
Circuit Type	Bussed	Bussed
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Mounting Type	Surface Mount	Surface Mount
Number of Pins	10	10
Number of Resistors	8	8
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Power Per Element	63 mW	63 mW
Resistance (Ohms)	1 kOhms	0 - 470 kOhms
Resistance (Ohms)	-	47k, 10k, 4.7k
Size / Dimension [x]	6.4 mm	6.4 mm
Size / Dimension [x]	0.252 in	0.252 in
Size / Dimension [y]	3.1 mm	3.1 mm
Size / Dimension [y]	0.122 in	0.122 in
Temperature Coefficient	250 ppm/°C	250 ppm/°C
Tolerance	5 %	5 %
Tolerance	-	Jumper

745C102 Series

RES ARRAY 8 RES 3.3K OHM 2512

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Resistance (Ohms)	Circuit Type	Number of Resistors	Mounting Type	Number of Pins	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power Per Element	Temperature Coefficient	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Resistance (Ohms)	Tolerance
CTS Resistor Products 745C102332JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR	3.3 kOhms	Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C
CTS Resistor Products 745C102104JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR	100 kOhms	Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C
CTS Resistor Products 745C102471JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR	470 Ohms	Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C
CTS Resistor Products 745C102473JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR		Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C	47k
CTS Resistor Products 745C102103JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR		Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C	10k
CTS Resistor Products 745C102472JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR		Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C	4.7k
CTS Resistor Products 745C102000XP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR	0 Ohms	Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C		-55 °C	125 °C		Jumper
CTS Resistor Products 745C102102JP	3.1 mm	6.4 mm	0.252 in	0.122 in	DDR SDRAM, DRAM, MDDR	1 kOhms	Bussed	8	Surface Mount	10	0.7 mm	0.028 in	63 mW	250 ppm/°C	5 %	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.42
		25	$ 0.34
		50	$ 0.29
		100	$ 0.25
		250	$ 0.21
		500	$ 0.18
		1000	$ 0.16
	Digi-Reel®	1	$ 0.74
		10	$ 0.42
		25	$ 0.34
		50	$ 0.29
		100	$ 0.25
		250	$ 0.21
		500	$ 0.18
		1000	$ 0.16
	Tape & Reel (TR)	4000	$ 0.13
		8000	$ 0.12

Description

General part information

745C102 Series

1k Ohm ±5% 63mW Power Per Element Bussed 8 Resistor Network/Array ±250ppm/°C 2512 (6432 Metric), Concave, Long Side Terminals
