TRC-50-1

Active

Cinch Connectivity Solutions Trompeter

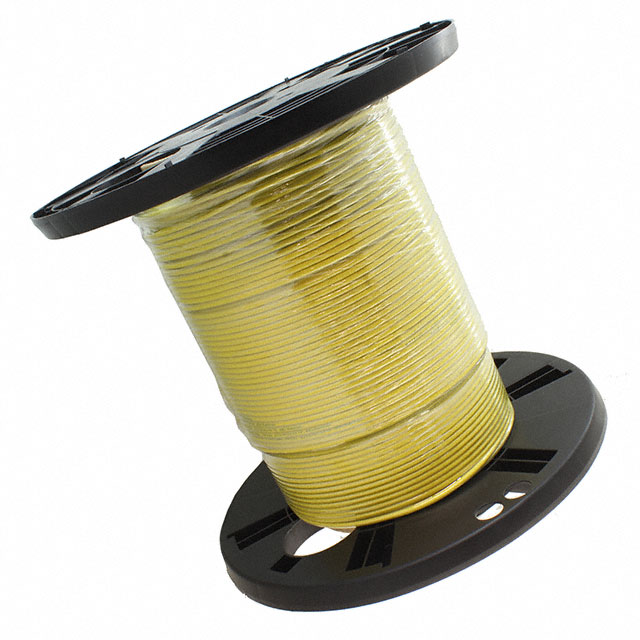

CABLE TRIAXIAL 500'

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CABLE TRIAXIAL 500'

Technical Specifications

Parameters and characteristics for this part

Specification	TRC-50-1

Cable Type	Triaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Dielectric Diameter [diameter]	1.19 mm
Dielectric Diameter [diameter]	0.047 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage [custom]	93 %
Shield Material	Copper, Tinned
Shield Type	Braid

CABLE TRIAXIAL 500'

Part	Shield Coverage [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Shield Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Impedance
Cinch Connectivity Solutions Trompeter TRC-50-1	93 %	7	36 AWG	Triaxial	Copper, Tinned	Yellow	-40 °C	75 ░C	Poly-Vinyl Chloride (PVC)	Braid	0.156 in	3.96 mm	Copper, Tinned	1.19 mm	0.047 in	152.4 m	6000 in	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Cable 500.0' (152.40m) 50 Ohms
