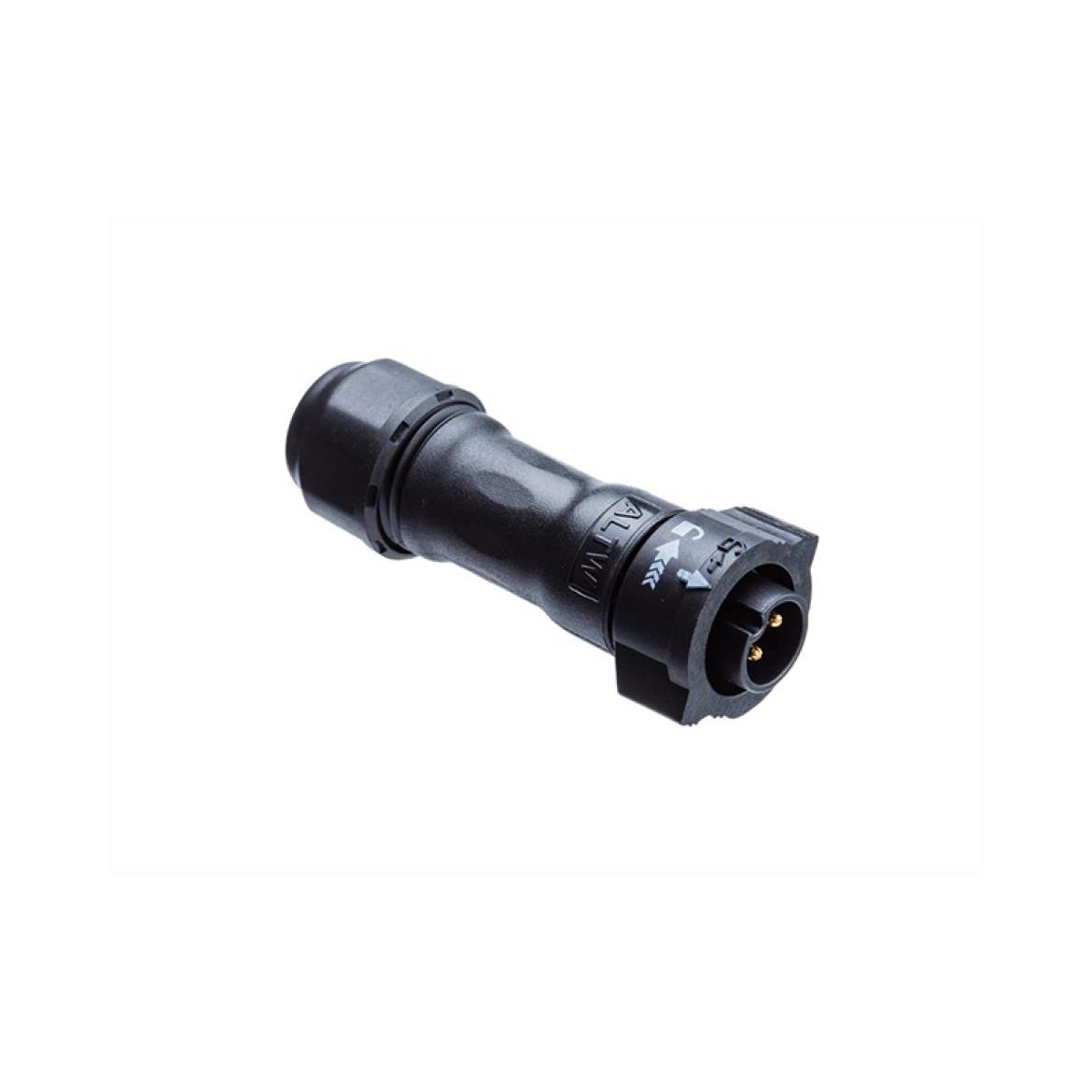

BD-05BFMA-QL8AN0

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 5A, 05 PIN

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 5A, 05 PIN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Color	Connector Type	Current Rating (Amps)	Termination	Ingress Protection	Contact Material	Orientation	Voltage Rating	Shell Size - Insert	Features	Contact Finish - Mating	Shielding	Insert Material	Shell Material	Fastening Type	Note	Contact Type	Type	Contact Shape	Housing Color
Amphenol LTW BD-05BFMA-QL8AP0	Free Hanging (In-Line)	Plastic	-40 °C	105 ░C	Thermoplastic	Black	Male Pins Plug	5 A	Crimp	IP68 - Dust Tight Waterproof	Copper Alloy	Keyed	300 VDC	B	Backshell	Gold	Unshielded	Thermoplastic
Amphenol LTW BD-05BFMA-LL6001	Free Hanging (In-Line)	Plastic	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Black	Male Pins Plug	5 A		IP66	Copper Alloy	Keyed		B	Backshell Coupling Nut	Gold	Unshielded	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Bayonet Lock
Amphenol LTW BD-05BFMA-SL6001	Free Hanging (In-Line)	Plastic	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Black	Male Pins Plug	5 A		IP66	Copper Alloy	Keyed		B	Backshell Coupling Nut	Gold	Unshielded	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-05BFMA-QL8AN0	Free Hanging (In-Line)	Plastic	-40 °C	105 ░C			Plug Housing			IP68 - Dust Tight Waterproof		Keyed		B	Backshell		Unshielded	Thermoplastic			Contacts Not Included	Crimp	For Male Pins	Circular	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
