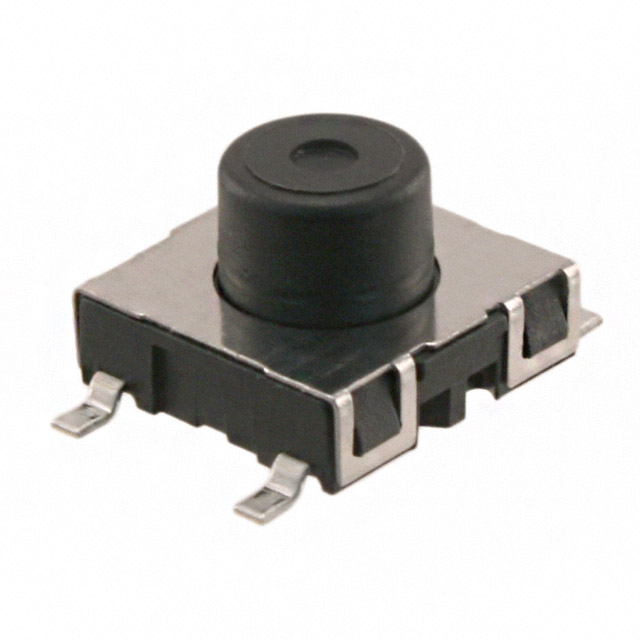

1241.1612.11

Active

SCHURTER Inc.

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX

Technical Specifications

Parameters and characteristics for this part

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX

Part	Mechanical Life	Contact Rating @ Voltage	Switch Function	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Outline [y]	Outline [x]	Illumination	Actuator Material	Actuator Orientation	Mounting Type	Operating Force	Switch Travel	Ingress Protection
SCHURTER Inc. 1241.1612.11	1000000 Cycles	0.05 A, 42 VDC	Off-Mom	Standard	SPST-NO	85 °C	-40 °C	Gull Wing	Tactile Feedback	11.4 mm	11.4 mm	Non-Illuminated	Polyphenylene Sulfide (PPS)	Top Actuated	Surface Mount	180 gf	0.35 mm	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
