9156ZH 0101000

Active

Belden Inc.

MULTI-PAIR 4COND 18AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 18AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	9156ZH 0101000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style 21307
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Voltage	Number of Conductors	Conductor Insulation	Length [x]	Length [x]	Wire Gauge	Jacket Color	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length	Length
Belden Inc. 9156ZH 010500	16	30 AWG	Multi-Pair	300 V	4	Polypropylene (PP)	500 '	152.4 m	18 AWG	Black	UL Style 21307	0.889 mm	0.035 in	Copper Tinned
Belden Inc. 9156ZH 0101000	16	30 AWG	Multi-Pair	300 V	4	Polypropylene (PP)			18 AWG	Black	UL Style 21307	0.889 mm	0.035 in	Copper Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.04

General part information

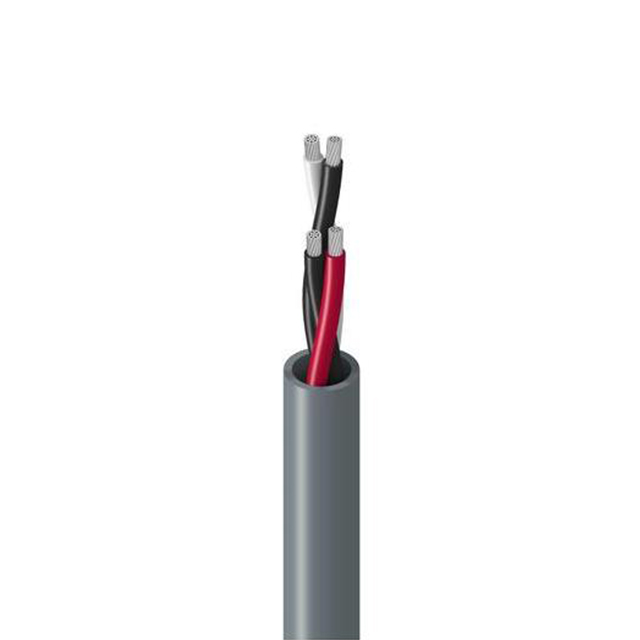

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 18 AWG 1000.0' (304.8m)
