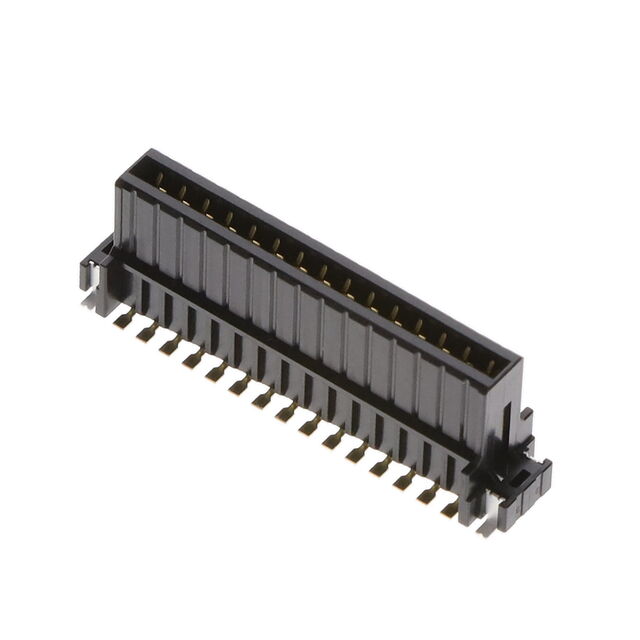

IMSA-10120S-30Z14-GFN4
ActiveIRISO USA Inc.
CONN SOCKET VERT B-TO-B FLOATING
Deep-Dive with AI
Search across all available documentation for this part.
IMSA-10120S-30Z14-GFN4
ActiveIRISO USA Inc.
CONN SOCKET VERT B-TO-B FLOATING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-10120S-30Z14-GFN4 |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board [z] | 12.35 mm |
| Height Above Board [z] | 0.486 " |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.42 | |
| 10 | $ 4.01 | |||
| 25 | $ 3.80 | |||
| 50 | $ 3.71 | |||
| 100 | $ 3.53 | |||
| Tape & Reel (TR) | 250 | $ 3.09 | ||
| 500 | $ 3.00 | |||
| 750 | $ 2.74 | |||
| 1250 | $ 2.56 | |||
| 1750 | $ 2.47 | |||
| 2500 | $ 2.38 | |||
Description
General part information
IMSA-1012 Series
30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
