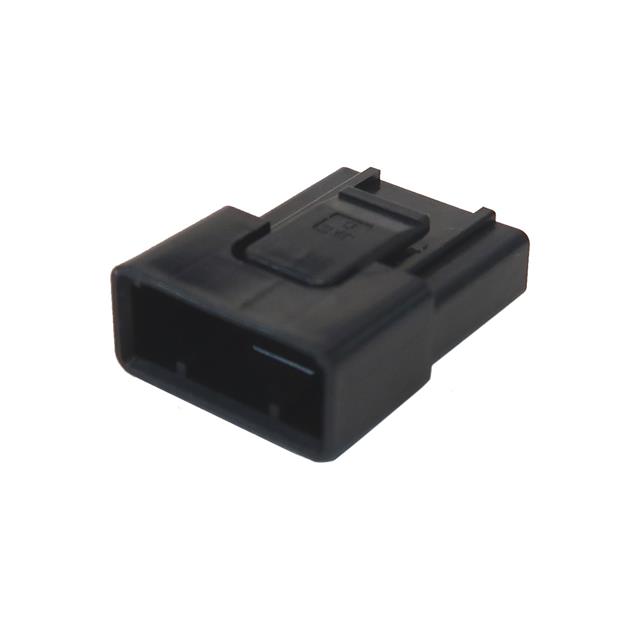

HB03P004PZ1
ActiveJAE Electronics
CONN PLUG HSG 4POS 2.40MM
Deep-Dive with AI
Search across all available documentation for this part.
HB03P004PZ1
ActiveJAE Electronics
CONN PLUG HSG 4POS 2.40MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HB03P004PZ1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 2.4 mm |
| Pitch [x] | 0.094 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.46 | |
| 10 | $ 2.64 | |||
| 80 | $ 2.09 | |||
| 440 | $ 1.74 | |||
| 945 | $ 1.61 | |||
| 4900 | $ 1.38 | |||
Description
General part information
HB03P004 Series
4 Rectangular Connectors - Housings Plug Black 0.094" (2.40mm)
Documents
Technical documentation and resources
No documents available
