MAXM17537EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAXM17537
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17537EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAXM17537
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17537EVKIT# | MAXM17537 Series |
|---|---|---|
| - | - | |
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 3 A | 3 A |
| Current - Output (Max) | - | 3 A |
| Features | - | Adjustable Output |
| Frequency - Switching | 700 kHz | 700 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 29-PowerBLGA Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 4.4 mm |
| Size / Dimension | - | 9 mm |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.35 in |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 0.17 in |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 29-SIP LGA (9x15) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17537 | MAXM17537 |
| Voltage - Input (Max) | - | 60 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 60 V | 60 V |
| Voltage - Input [Min] | 19 V | 19 V |
| Voltage - Output | 15 VDC | 15 VDC |
| Voltage - Output 1 | - | 8 V |
| Voltage - Output 1 | - | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 40.12 | |
MAXM17537 Series
POWERBLGA-29 DC-DC POWER MODULES ROHS
| Part | Supplier Device Package | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Package / Case | Voltage - Input (Max) [Max] | Mounting Type | Applications | Number of Outputs | Voltage - Input (Min) [Min] | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Frequency - Switching | Voltage - Output | Current - Output | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17537ALY# | 29-SIP LGA (9x15) | Adjustable Output | 4.4 mm | 9 mm | 15 mm | 0.35 in | 0.59 in | 0.17 in | 125 °C | -40 °C | 3 A | Non-Isolated PoL Module | 8 V | 24 V | 29-PowerBLGA Module | 60 V | Surface Mount | ITE (Commercial) | 1 | 4.5 V | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17537ALY# | ||||||||||||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17537ALY#T | 29-SIP LGA (9x15) | 4.4 mm | 9 mm | 15 mm | 0.35 in | 0.59 in | 0.17 in | 125 °C | -40 °C | 3 A | Non-Isolated PoL Module | 8 V | 24 V | 29-PowerBLGA Module | 60 V | Surface Mount | ITE (Commercial) | 1 | 4.5 V | |||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17537EVKIT# | MAXM17537 | 60 V | 19 V | DC/DC, Step Down | 700 kHz | 15 VDC | 3 A | Board(s) | Non-Isolated | 1 | Fully Populated | Buck |
Description
General part information
MAXM17537 Series

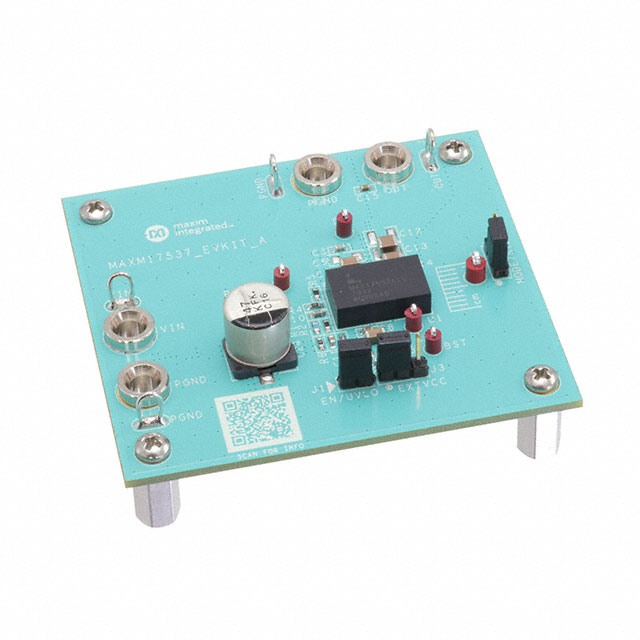

MAXM17537 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
