Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Max)	Current - Output (Max)	Voltage - Input (Min)	Package Leads	Package Name	Mounting Type	Voltage - Output 1	Power (Watts)	Approval Agency	Number of Outputs	Features	Voltage - Isolation	Applications	Efficiency	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Type	Voltage - Output 2	Current - Output (Max) Options
Cincon Electronics Co. LTD EC1SA13N	-40 °C	85 °C	13.2 V	67 mA	10.8 V	5 Leads	7-SIP	Through Hole	15 V	1 W	CE	1	SCP	1500 Vrns	ITE (Commercial)	81 %	0.24 in	0.4 in	0.77 in	Isolated Module
Cincon Electronics Co. LTD EC1SA04NS	-40 °C	85 °C	5.5 V	42 mA	4.5 V	6 Leads	10-SMD Module	Surface Mount	12 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	78 %	0.36 in	0.3 in	0.64 in	Isolated Module	-12 V
Cincon Electronics Co. LTD EC1SA25N	-40 °C	85 °C	26.4 V	33 mA	21.6 V	5 Leads	7-SIP	Through Hole	15 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	82 %	0.24 in	0.4 in	0.77 in	Isolated Module	-15 V
Cincon Electronics Co. LTD EC1SA14N	-40 °C	85 °C	13.2 V	42 mA	10.8 V	5 Leads	7-SIP	Through Hole	12 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	80 %	0.24 in	0.4 in	0.77 in	Isolated Module	-12 V
Cincon Electronics Co. LTD EC1SA23N	-40 °C	85 °C	26.4 V	67 mA	21.6 V	5 Leads	7-SIP	Through Hole	15 V	1 W	CE	1	SCP	1500 Vrns	ITE (Commercial)	81 %	0.24 in	0.4 in	0.77 in	Isolated Module
Cincon Electronics Co. LTD EC1SA06N	-40 °C	85 °C	5.5 V		4.5 V	5 Leads	7-SIP	Through Hole	5 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	74 %	0.24 in	0.4 in	0.77 in	Isolated Module	-5 V	100mA
Cincon Electronics Co. LTD EC1SA16N	-40 °C	85 °C	13.2 V		10.8 V	5 Leads	7-SIP	Through Hole	5 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	77 %	0.24 in	0.4 in	0.77 in	Isolated Module	-5 V	100mA
Cincon Electronics Co. LTD EC1SA03N	-40 °C	85 °C	5.5 V	67 mA	4.5 V	5 Leads	7-SIP	Through Hole	15 V	1 W	CE	1	SCP	1500 Vrns	ITE (Commercial)	79 %	0.24 in	0.4 in	0.77 in	Isolated Module
Cincon Electronics Co. LTD EC1SA24N	-40 °C	85 °C	26.4 V	42 mA	21.6 V	5 Leads	7-SIP	Through Hole	12 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	81 %	0.24 in	0.4 in	0.77 in	Isolated Module	-12 V
Cincon Electronics Co. LTD EC1SA26N	-40 °C	85 °C	26.4 V		21.6 V	5 Leads	7-SIP	Through Hole	5 V	1 W	CE	2	SCP	1500 Vrns	ITE (Commercial)	79 %	0.24 in	0.4 in	0.77 in	Isolated Module	-5 V	100mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

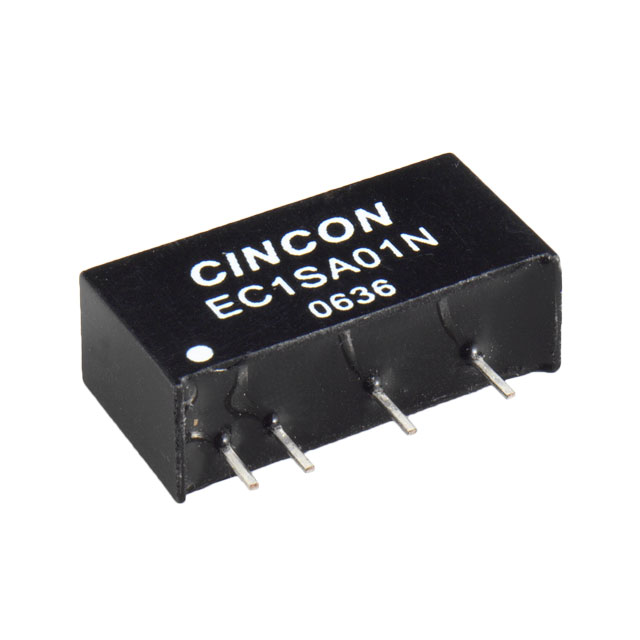

EC1SA01N | Datasheet
