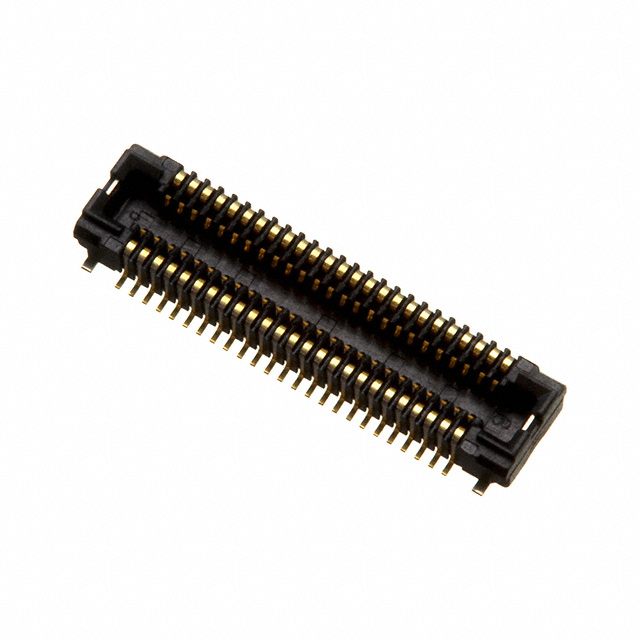

AXF5G5012A

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5G5012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features	Contact Finish	Connector Type	Mounting Type	Number of Rows
Panasonic Electric Works AXF5G5012A	0.057 in	1.45 mm	50	0.016 in	0.4 mm	1.5 mm	Solder Retention	Gold	Socket Center Strip Contacts	Surface Mount	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Socket, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
