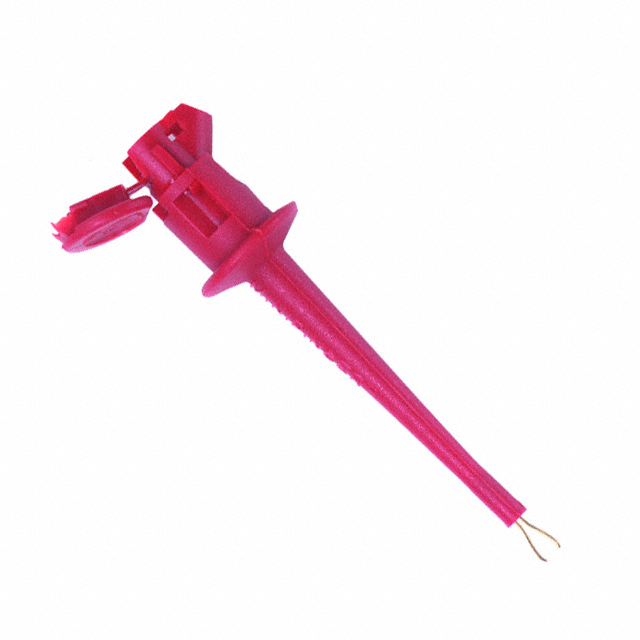

5418-2

Active

Pomona Electronics

MINIPINCER RED SLD 20-22 AWG WIR

Search across all available documentation for this part.

Active

Pomona Electronics

MINIPINCER RED SLD 20-22 AWG WIR

Technical Specifications

Parameters and characteristics for this part

Specification	5418-2

Color	Red
Features	Do It Yourself (DIY), Push Button Style
For Use With/Related Products [Max]	22 AWG
For Use With/Related Products [Min]	20 AWG
Hook Type	Grabber, Pincer
Hook, Pincer Opening [Max] [z]	0.09 in
Hook, Pincer Opening [Max] [z]	2.29 mm
Length	65.79 mm
Length	2.59 in
Quantity	1 Box
Temperature Range	80 °C
Temperature Range	176 °F
Termination	Solder
Termination [Max]	22 AWG
Termination [Min]	20 AWG

Part	Length	Length	Color	Hook, Pincer Opening [Max] [z]	Hook, Pincer Opening [Max] [z]	Termination [Min]	Termination	Termination [Max]	Temperature Range	Temperature Range	For Use With/Related Products [Min]	For Use With/Related Products [Max]	Quantity	Hook Type	Features
Pomona Electronics 5418-2	65.79 mm	2.59 in	Red	0.09 in	2.29 mm	20 AWG	Solder	22 AWG	80 °C	176 °F	20 AWG	22 AWG	1 Box	Grabber Pincer	Do It Yourself (DIY) Push Button Style

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red Mini Solder, 20 ~ 22 AWG Wire Features Do It Yourself (DIY), Push Button Style
