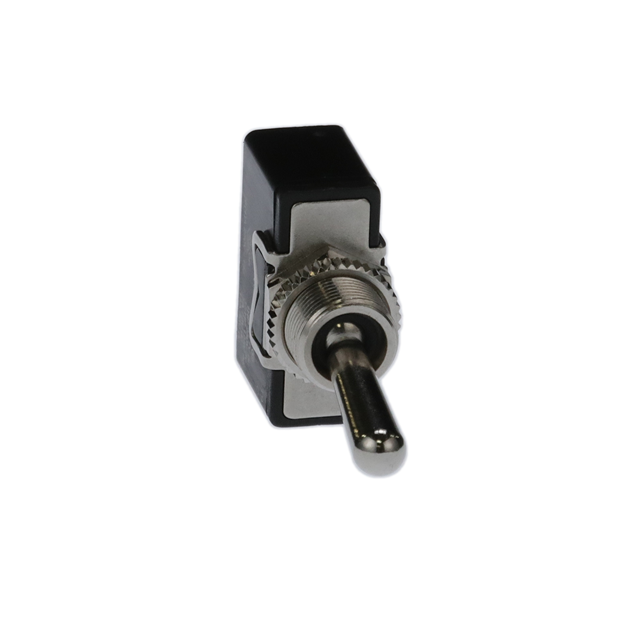

C3900BAAAA

Active

BULGIN LIMITED

SWITCH TOGGLE SPST 20A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH TOGGLE SPST 20A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	C3900BAAAA

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Switch Function	Current Rating (Amps)	Termination Style	Bushing Thread	Actuator Length [x]	Illumination	Actuator Type	Voltage Rating - DC	Ingress Protection
BULGIN LIMITED C3900BAAAA	250 V	SPST	12.7 mm	On-Off	20 A	Quick Connect - 0.250" (6.3mm)	15/32-32	17.5 mm	Non-Illuminated	Standard Round
BULGIN LIMITED C3900BA	125 V	SPST	12.7 mm	On-Off	14 A 20 A	Quick Connect - 0.250" (6.3mm)	15/32-32	17.5 mm	Non-Illuminated	Standard Round	36 VDC
BULGIN LIMITED C3900BE	125 V	SPST	12.7 mm	On-Off	14 A 20 A	Quick Connect - 0.250" (6.3mm)	15/32-32	17.5 mm	Non-Illuminated	Standard Round	36 VDC	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPST Panel Mount
