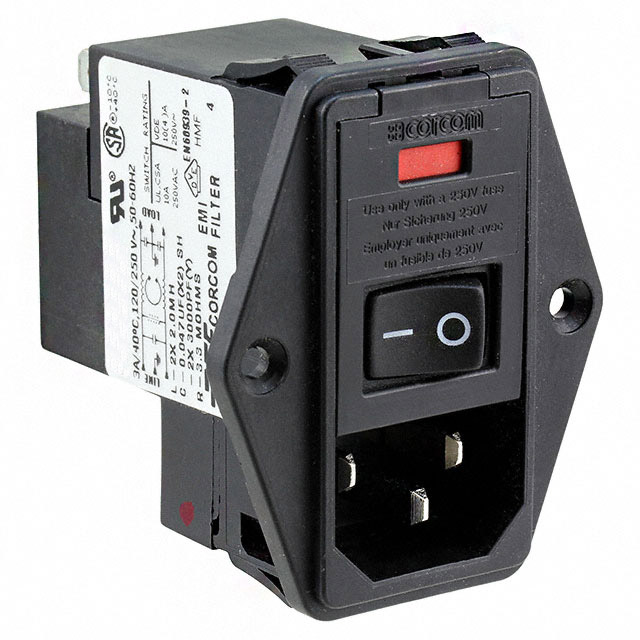

PE0S0DS30

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE0S0DS30	PE0S Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	3 A	3 - 10 A
Current Rating - Filter	3 A	3 - 10 A
Features	-	Conversion Clip, Shielded, Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused, Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Cutout Dimensions	-	29.21 mm
Panel Cutout Dimensions	-	55.91 mm
Panel Thickness	-	2 mm
Panel Thickness [Max]	2.9 mm	2.9 mm
Panel Thickness [Max]	0.114 in	0.079 - 0.114 "
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Termination	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Filter Type	Mounting Type	Fuse Holder, Drawer	Current Rating - Filter	Voltage Rating - Appliance Inlet	Switch Features	Current Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Corcom Filters PE0S0DZ6C	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect	29.21 mm	55.91 mm	IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	Fuse Holder, Twin Fused	6 A	120 VAC	Switch On-Off	6 A	CSA, UL, VDE
TE Connectivity Corcom Filters PE0SSSSXA	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect			IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	Fuse Holder	10 A	120 VAC	Switch On-Off	10 A	CSA, UL, VDE	Variable Size	Conversion Clip, Shielded, Voltage Selector	0.079 "	0.031 "	2 mm	0.79 mm
TE Connectivity Corcom Filters PE0S0DS30	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect			IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	Fuse Holder, Twin Fused	3 A	120 VAC	Switch On-Off	3 A	CSA, UL, VDE	Variable Size		0.114 in	0.031 "		0.79 mm	2.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
