IL5
ObsoleteVishay General Semiconductor - Diodes Division

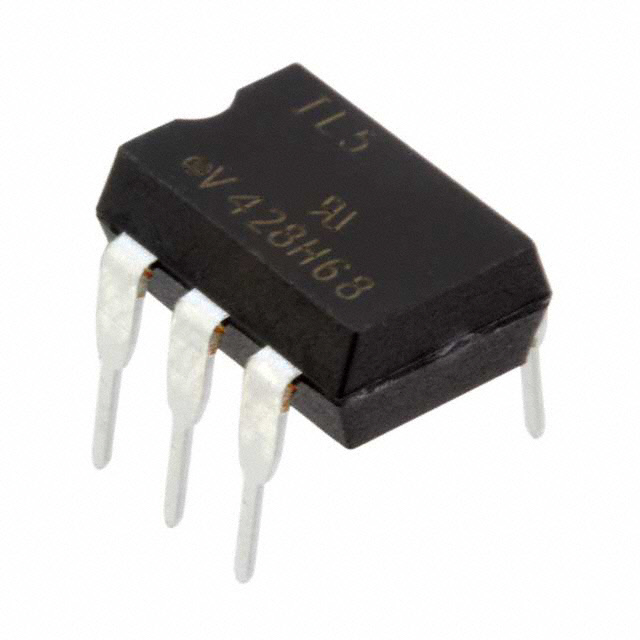

OPTOISO 5.3KV TRANS W/BASE 6DIP
Deep-Dive with AI
Search across all available documentation for this part.
IL5
ObsoleteVishay General Semiconductor - Diodes Division
OPTOISO 5.3KV TRANS W/BASE 6DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL5 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 60 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) | 400 % |
| Current Transfer Ratio (Min) [Min] | 50 % |
| Input Type | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP |
| Package / Case | 0.3 in |
| Package / Case | 7.62 mm |
| Rise / Fall Time (Typ) [custom] | 20 µs |
| Rise / Fall Time (Typ) [custom] | 7 µs |
| Supplier Device Package | 6-DIP |
| Turn On / Turn Off Time (Typ) [custom] | 7.2 µs |
| Turn On / Turn Off Time (Typ) [custom] | 2.6 µs |
| Vce Saturation (Max) [Max] | 250 mV |
| Voltage - Forward (Vf) (Typ) | 1.25 V |
| Voltage - Isolation | 5300 Vrms |
| Voltage - Output (Max) [Max] | 70 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1040 | $ 0.22 | |
Description
General part information
IL5 Series
Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
