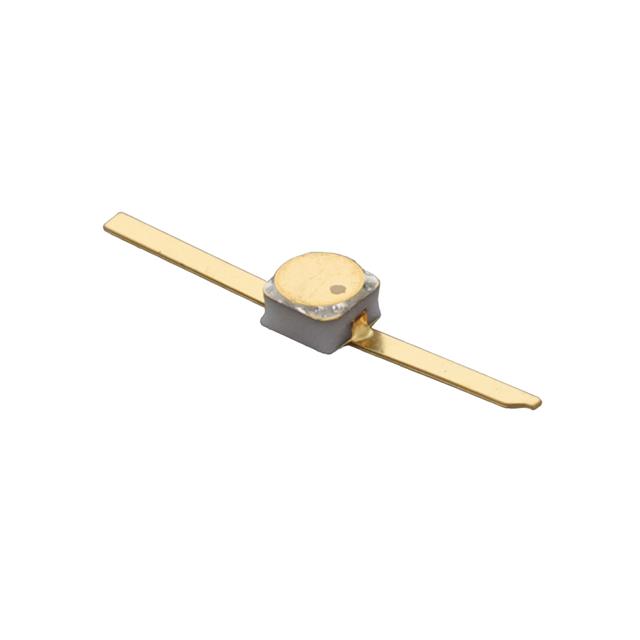

MSS20-051-H27

Active

MACOM Technology Solutions

RF DIODE SCHOTTKY 1V 100MW H27

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF DIODE SCHOTTKY 1V 100MW H27

Technical Specifications

Parameters and characteristics for this part

Part	Power Dissipation (Max) [Max]	Voltage - Peak Reverse (Max) [Max]	Diode Type	Current - Max [Max]	Capacitance @ Vr, F	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
MACOM Technology Solutions MSS20-141-0402	100 mW	1 V	Schottky - Single	35 mA	0.15 pF	0402	-65 ░C	150 °C	0402 (1005 Metric)
MACOM Technology Solutions MSS20-047-T86	100 mW		Schottky - Single		0.31 pF	T86	-65 °C	150 °C	T86
MACOM Technology Solutions MSS20-141-B10D	100 mW	1 V	Schottky - Single	35 mA	0.08 pF	B10D	-65 ░C	150 °C	B10D
MACOM Technology Solutions MSS20-051-H27	100 mW	1 V	Schottky - Single	35 mA	0.27 pF	H27	-65 ░C	150 °C	H27

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 104.51

General part information

RF Diode Schottky - Single 1V 35 mA 100 mW H27
