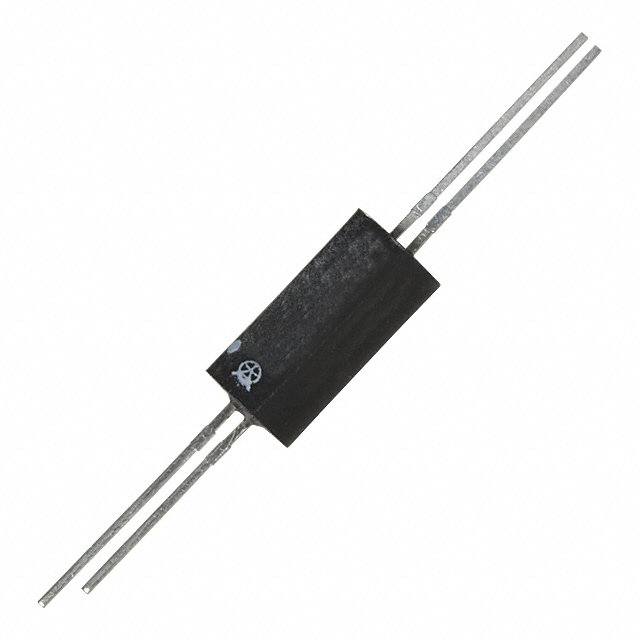

OPI1264B

Active

TT Electronics/Optek Technology

OPTOISOLATOR 15KV TRANS AXIAL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

OPTOISOLATOR 15KV TRANS AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	OPI1264B

Current - DC Forward (If) (Max) [Max]	40 mA
Current Transfer Ratio (Max)	125 %
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1.81 mOhm
Package / Case	Axial - 4 Leads
Supplier Device Package	Axial
Vce Saturation (Max) [Max]	400 mV
Voltage - Forward (Vf) (Typ)	1.6 V
Voltage - Isolation	15000 VDC
Voltage - Output (Max) [Max]	30 V

Part	Number of Channels	Vce Saturation (Max) [Max]	Mounting Type	Current Transfer Ratio (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Voltage - Output (Max) [Max]	Output Type	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Input Type	Package / Case	Supplier Device Package	Voltage - Isolation
TT Electronics/Optek Technology OPI1264B	1	400 mV	Through Hole	125 %	85 °C	-40 °C	1.6 V	30 V	1.81 mOhm	40 mA	50 %	DC	Axial - 4 Leads	Axial	15000 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 15000VDC 1 Channel Axial
