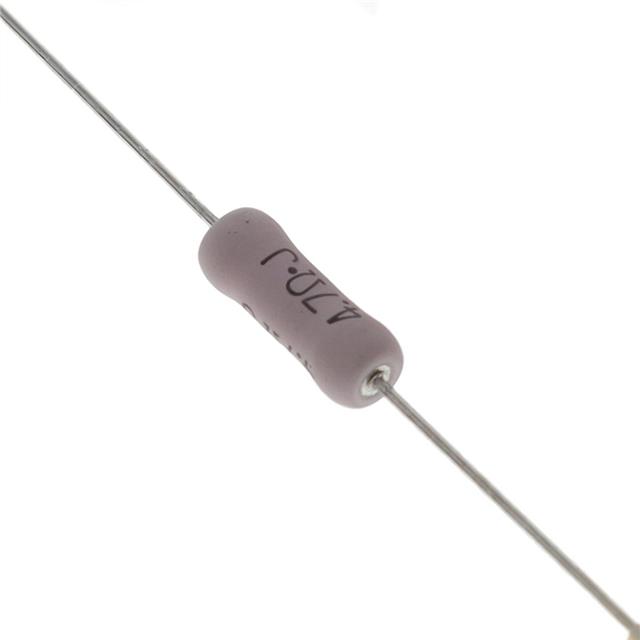

MOSX3CT631R4R7J
ActiveKOA Speer Electronics, Inc.
RES,AXIAL,METAL OXIDE,4.7 OHMS,5% +/-TOL,-300,300PPM TC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOSX3CT631R4R7J
ActiveKOA Speer Electronics, Inc.
RES,AXIAL,METAL OXIDE,4.7 OHMS,5% +/-TOL,-300,300PPM TC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOSX3CT631R4R7J |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 3 W |
| Resistance | 4.7 Ohms |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Size / Dimension [x] | 15.5 mm |
| Size / Dimension [x] | 0.61 in |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| Tape & Reel (TR) | 1000 | $ 0.06 | ||
Description
General part information
MOSX3CT631 Series
4.7 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film
