P50LE-030P1-R1-DA

Active

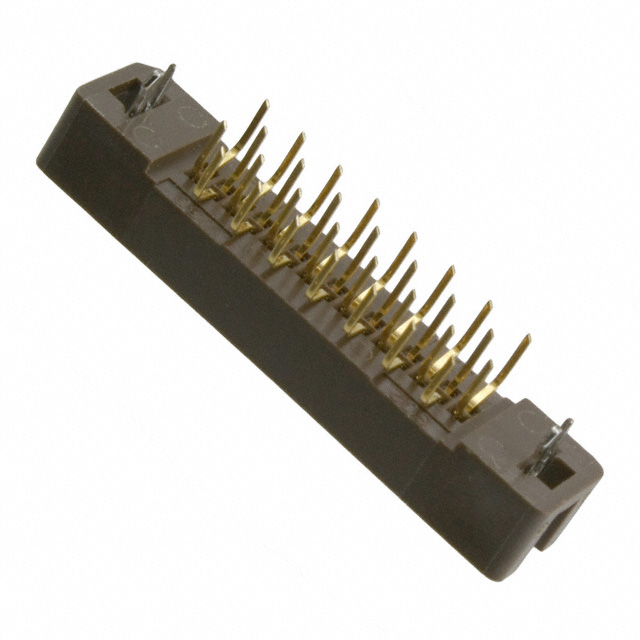

80000907305 P50LE-030P1-R1-DA =PAK50 CONNECTOR/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P50LE-030P1-R1-DA

Active

80000907305 P50LE-030P1-R1-DA =PAK50 CONNECTOR/ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P50LE-030P1-R1-DA	P50LE Series

Connector Type	Plug	Plug
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Tin, Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Mating	-	2 µin
Contact Finish Thickness - Mating	-	0.051 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Finish Thickness - Post	-	2.03 µm
Contact Finish Thickness - Post	-	80 µin
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Center Strip Contact	Center Strip Contact
Current Rating (Amps)	0.5 A	0.5 A
Fastening Type	Latch Holder	Latch Holder
Features	-	Board Guide
Insulation Color	Brown	Brown
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Height	-	7 mm
Insulation Height	-	0.276 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	30	20 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

P50LE Series

CONN HEADER VERT 68POS 1.27MM

Part	Fastening Type	Shrouding	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Insulation Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Type	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Features
3M P50LE-068P1-R1-TGF	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Tin	2 µin	0.051 µm	Solder	Through Hole	Polyphenylene Sulfide (PPS)	68	2.03 µm	80 µin	Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All
3M P50LE-050P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	50			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
3M P50LE-050P1-RR1-TGF	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Tin	2 µin	0.051 µm	Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS)	50	2.03 µm	80 µin	Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All			7 mm	0.276 in
3M P50LE-030P1-RR1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS), Glass Filled	30			Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash	7 mm	0.276 in
3M P50LE-068P1-SML-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Surface Mount	Polyphenylene Sulfide (PPS), Glass Filled	68			Gold	0.5 A	UL94 V-0	0.197 in	5 mm			Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash			Board Guide
3M P50LE-100P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	100			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
3M P50LE-080P1-RR1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS), Glass Filled	80			Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash	7 mm	0.276 in
3M P50LE-080P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	80			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
3M P50LE-080P1-RR1-TGF	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Tin	2 µin	0.051 µm	Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS)	80	2.03 µm	80 µin	Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All			7 mm	0.276 in
3M P50LE-030P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	30			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
