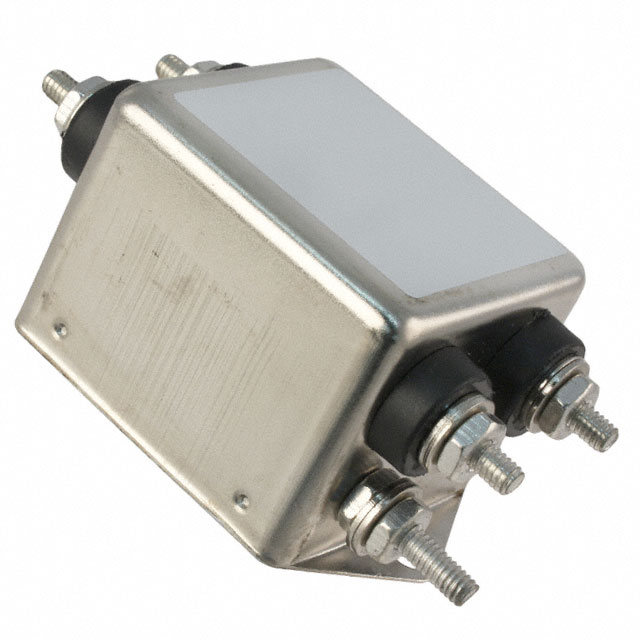

1-1609034-6
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VDC/VAC 10A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
1-1609034-6
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VDC/VAC 10A CHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1609034-6 | 1609034 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | VDE, CSA, UR | VDE, CSA, UR |
| Configuration | Single Stage | Single Stage |
| Current | 10 A | 6 - 30 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | - | 1 - 900 mH |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Termination Style | Threaded Post (8-32) | Threaded Post (8-32), Quick Connect |
| Voltage - Rated AC | 250 V | 250 V |
| Voltage - Rated DC | 250 V | 250 V |
1609034 Series
LINE FILTER 250VDC/VAC 10A CHAS
| Part | Configuration | Approval Agency | Frequency - Operating [Max] | Frequency - Operating [Min] | Applications | Filter Type | Voltage - Rated AC | Mounting Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated DC | Current | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 1-1609034-4 | Single Stage | CSA, UR, VDE | 60 Hz | 50 Hz | General Purpose | Single Phase | 250 V | Chassis Mount | Threaded Post (8-32) | -10 °C | 40 °C | 250 V | 10 A | |
TE Connectivity Corcom Filters 1-1609034-1 | Single Stage | CSA, UR, VDE | 60 Hz | 50 Hz | General Purpose | Single Phase | 250 V | Chassis Mount | Quick Connect | -10 °C | 40 °C | 250 V | 6 A | 1 mH |
TE Connectivity Corcom Filters 1-1609034-6 | Single Stage | CSA, UR, VDE | 60 Hz | 50 Hz | General Purpose | Single Phase | 250 V | Chassis Mount | Threaded Post (8-32) | -10 °C | 40 °C | 250 V | 10 A | |
TE Connectivity Corcom Filters 2-1609034-1 | Single Stage | CSA, UR, VDE | 60 Hz | 50 Hz | General Purpose | Single Phase | 250 V | Chassis Mount | Threaded Post (8-32) | -10 °C | 40 °C | 250 V | 30 A | 900 µH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.98 | |
Description
General part information
1609034 Series
Single Phase EMC/EMI Line Filter 10 A 250V 250V 50/60Hz Single Stage Threaded Post (8-32)
